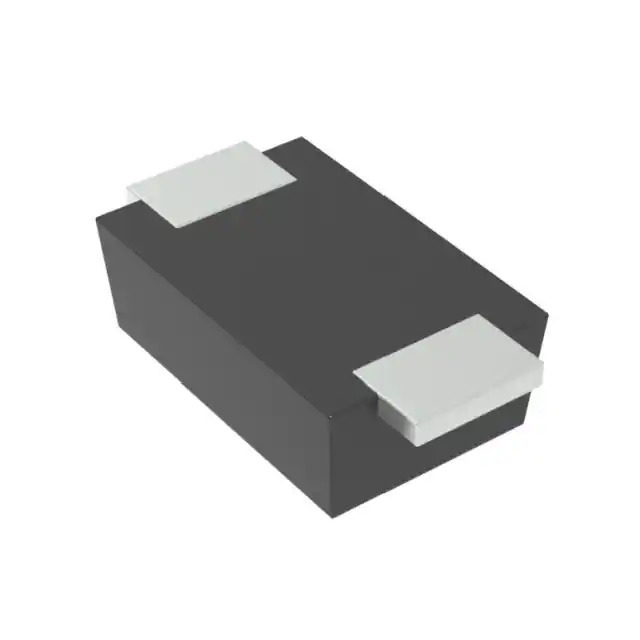

SJD12A22L01

Name: SJD12A22L01
Brand: Yageo
SKU: 1362310
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A22L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 22V, 35.5V, R / 35.5V Clamp 5.7A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12A22L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	SJD12A(C)XXXL01
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	5.7A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362310-SJD12A22L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A22L01 CAD Model

Alternative Products

Description

The SJD12A22L01 is a Zener type transient voltage suppressor diode from YAGEO's SJD12A(C)XXXL01 series.

Type: Zener
Voltage - Reverse Standoff (Typ): 22V
Voltage - Breakdown (Min): 24.4V
Voltage - Clamping (Max) @ Ipp: 35.5V @ 5.7A (10/1000µs)
Power - Peak Pulse: 200W
Applications: General Purpose
Mounting Type: Surface Mount
Package / Case: DO-219AA (SOD-123S)
Operating Temperature: -55°C ~ 150°C (TJ)
ECCN: EAR99
Packaging: Tape & Reel (TR)
