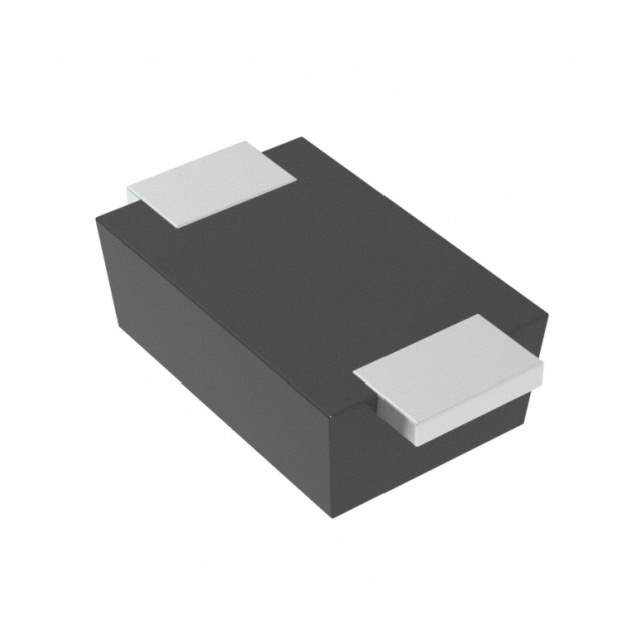

SJD12A7.5L01

Name: SJD12A7.5L01
Brand: Yageo
SKU: 1334988
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SJD12A7.5L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 7.5V, 12.9V, / 12.9V Clamp 15.5A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12A7.5L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7.5V
Voltage - Breakdown (Min)	8.33V
Voltage - Clamping (Max) @ Ipp	12.9V
Current - Peak Pulse (10/1000µs)	15.5A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	13-SJD12A7.5L01DKR,13-SJD12A7.5L01TR,13-SJD12A7.5L01CT
Standard Package	3,000
Win Source Part Number	1334988-SJD12A7.5L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A7.5L01 CAD Model

Alternative Products

Description

The Yageo SJD12A7.5L01 is a surface mount Zener diode that is designed for general purpose applications.

Reverse Standoff Voltage: 7.5V
Breakdown Voltage: 8.33V
Maximum Voltage Clamping @ Ipp: 12.9V
Peak Pulse Power: 200W
Channel: Unidirectional
Peak Pulse Current: 15.5A
Package: SOD-123S
Operating Temperature Range: -55°C to 150°C
Compliance: ROHS3 compliant
Application: Circuit protection
