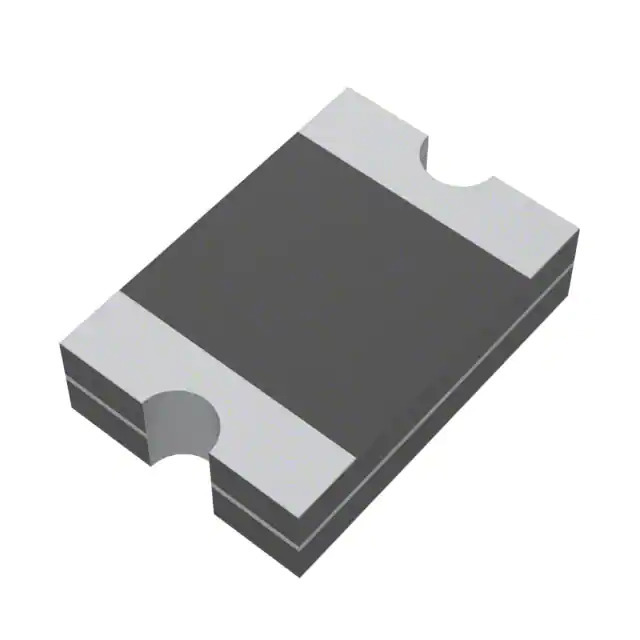

Same model may have multiple batches, images only for reference.

SMD1210B110TF/12

Name: SMD1210B110TF/12
Brand: Yageo
SKU: 1361636
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1210B110TF/12
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 12V 1.1 A Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet	SMD1210B110TF/12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1210
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	12V
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Current - Max	100 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	50 mOhms
Resistance - Post Trip (R1) (Max)	210 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric), Concave
Size / Dimension	0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max)	-
Thickness (Max)	0.049" (1.25mm)
Lead Spacing	-
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361636-SMD1210B110TF/12
Ultra Librarian 3D Model	Ultra Librarian SMD1210B110TF/12 CAD Model

Alternative Products

Description

The YAGEO 1361636-SMD1210B110TF/12 is a polymeric PTC resettable fuse from the SMD1210 series.

Operating Temperature: -40°C to 85°C
Package Size: 1210 (3225 Metric), Concave
Mounting: Surface mount
Maximum Current: 100A
Maximum Voltage: 12V
Current Hold (Ih): 1.1A
Current Trip (It): 2.2A
Time to Trip: 300ms
Initial Resistance (Ri): 50 mOhms
Post-Trip Resistance (R1): 210 mOhms
Approvals: cUL, TUV, UL
