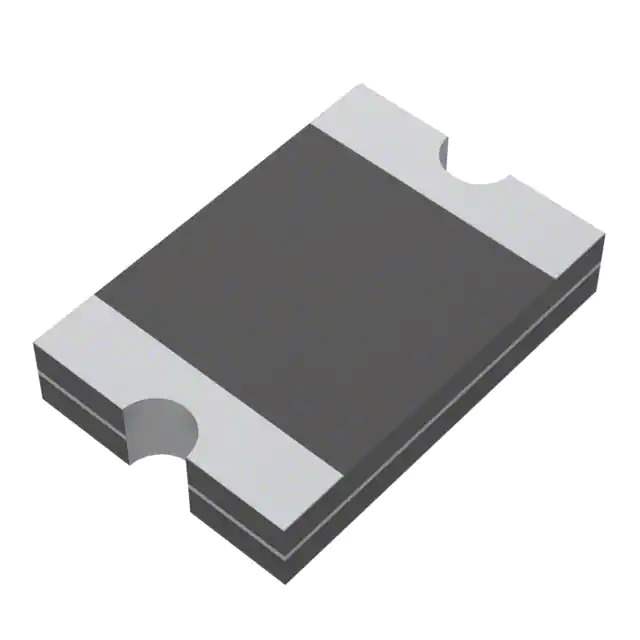

Same model may have multiple batches, images only for reference.

SMD1812B110TF

Name: SMD1812B110TF
Brand: Yageo
SKU: 1155772
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1812B110TF
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	PPTC SMD 1812, 8V 1.1A, REEL 7"
Datasheet	SMD1812B110TF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1812
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	8V
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Current - Max	100 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	210 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric), Concave
Size / Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.079" (2.00mm)
Approval Agency	cUL, TUV, UL
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1155772-SMD1812B110TF
Ultra Librarian 3D Model	Ultra Librarian SMD1812B110TF CAD Model

Alternative Products

Description

The 1155772-SMD1812B110TF is a polymeric PTC resettable fuse designed for circuit protection.

Series: SMD1812
Package: Tape & Reel
Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness: 0.079" (2.00mm)
Maximum Voltage: 8V
Maximum Current: 100A
Hold Current (Ih): 1.1A
Trip Current (It): 2.2A
Time to Trip: 300ms
Mounting Type: Surface Mount
Initial Resistance (Ri): 40 mOhms
Post-Trip Resistance (R1): 210 mOhms
Manufacturer: YAGEO
