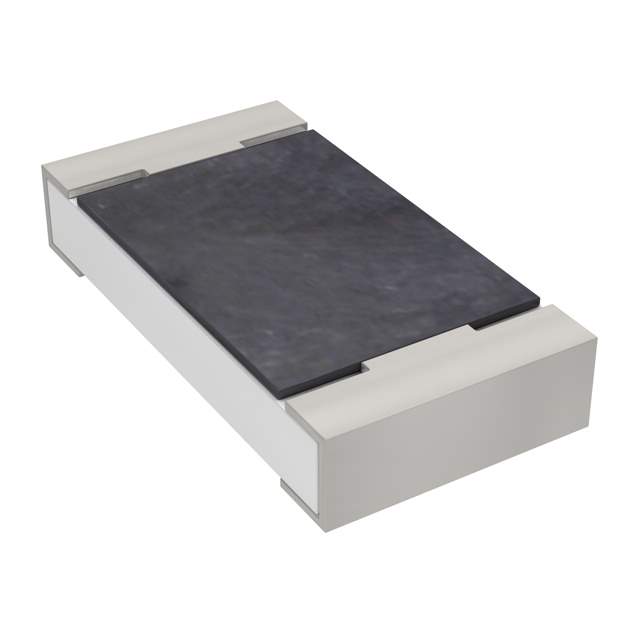

SR1206FR-07100RL Real Image
Same model may have multiple batches, images only for reference.

SR1206FR-07100RL

Part No SR1206FR-07100RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 100 OHM 1% 1/4W 1206 / 100 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Yageo
Packaging Reel - TR
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1326279-SR1206FR-07100RL
Ultra Librarian 3D Model Ultra Librarian SR1206FR-07100RL CAD Model

Description

The 1326279-SR1206FR-07100RL is a chip resistor from Yageo that is surface mounted and falls under the category of resistors.

  • Pulse Withstanding: Yes
  • Automotive Applications: Suitable
  • Package: Reel-TR
  • Standard Package: 5,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 100 Ohms
  • Power Rating: 0.25W or 1/4W
  • Size: 0.122” L x 0.063” W (3.10mm x 1.60mm)
  • Height: 0.026” (0.65mm) Max
  • Composition: Thick Film
  • Terminations: 2
  • Temperature Range: -55°C to 155°C
  • AEC-Q200: Rated
  • Package: 1206 (3216 Metric)
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • HTSUS: 8533.21.0030
  • ROHS3 Compliant: Yes
