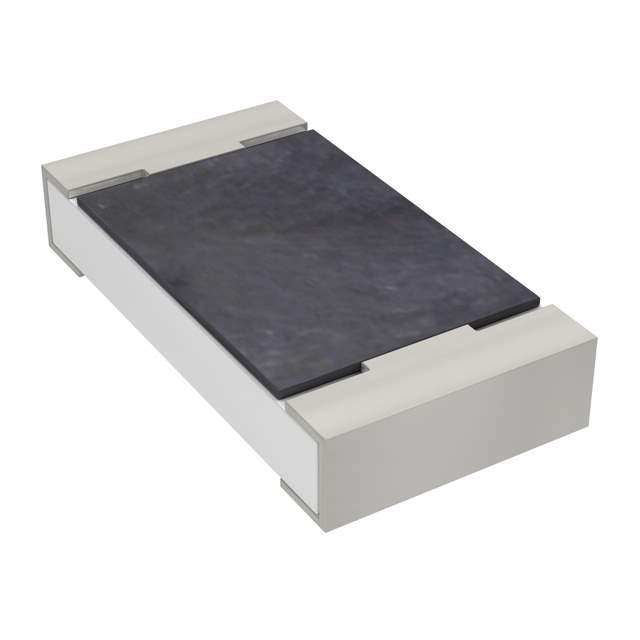

SR1206JR-074R7L Real Image
Same model may have multiple batches, images only for reference.

SR1206JR-074R7L

Part No SR1206JR-074R7L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7 OHM 5% 1/4W 1206
Datasheet
SR1206JR-074R7L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 4.7
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 1206
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Win Source Part Number 098135-SR1206JR-074R7L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian SR1206JR-074R7L CAD Model

Description

The SR1206JR-074R7L is a thick-film resistor from Yageo.

  • Supply and Demand Status: Sufficient
  • Power Rating: 0.25W, 1/4W
  • Resistance: 4.7Ω
  • Tolerance: ±5%
  • Application: Automotive
  • Compliance: AEC-Q200
  • Temperature Range: -55°C to 155°C
  • Package: 1206
  • Feature: Pulse-withstanding
