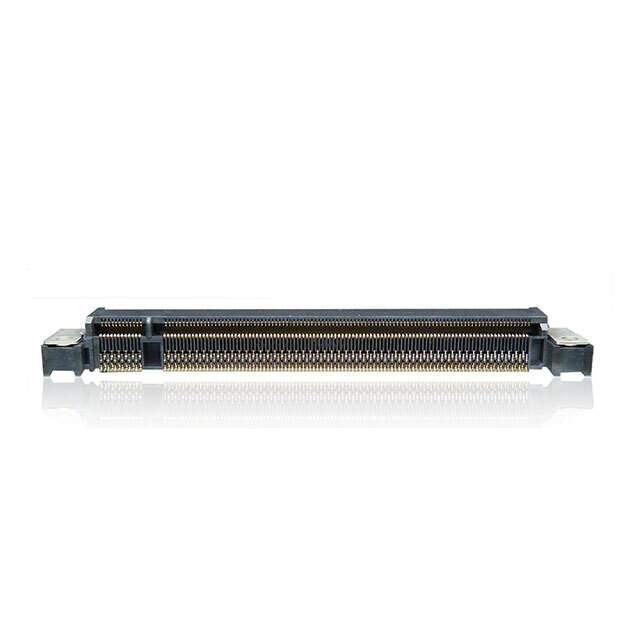

CN113-230-0001(01)VE Real Image
Same model may have multiple batches, images only for reference.

CN113-230-0001(01)VE

Part No CN113-230-0001(01)VE
Manufacturer Yamaichi
Catalog Card Edge Connectors - Edgeboard Connectors
Description 230-PIN, 0.5MM PITCH INFOTAINMEN  /  230 Position Female Connector Gold-Nickel 0.020" (0.50mm) Black
Datasheet
CN113-230-0001(01)VE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Yamaichi Electronics
Package Bulk
Gender Female
Number of Positions 230
Number of Rows 2
Pitch 0.020" (0.50mm)
Mounting SMD (SMT)
Termination Solder
Contact Finish Gold-Nickel
Contact Finish Thickness Flash
Color Black
Flange Feature Straddle Mount Opening, Threaded, 0.091" (2.30mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number CN113
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2408-CN113-230-0001(01)VE
Standard Package 1
Win Source Part Number 1170985-CN113-230-0001(01)VE
Ultra Librarian 3D Model Ultra Librarian CN113-230-0001(01)VE CAD Model

Description

The CN113-230-0001(01)VE is a high-quality card edge connector that is manufactured by Yamaichi Electronics.

  • Manufacturer: Yamaichi Electronics
  • Product: CN113-230-0001(01)VE
  • Part Number: 1170985-CN113-230-0001(01)VE
  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 230
  • Gender: Female
  • Mounting: Straddle mount opening, threaded, 0.091" (2.30mm) flange
  • Contact Finish: Gold-Nickel
  • Contact Finish Thickness: Flash
  • Color: Black
  • Termination: Solder
  • Mounting Type: Surface Mount Device (SMD)
  • Standard Packaging: 1
  • Operating Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
