Same model may have multiple batches, images only for reference.

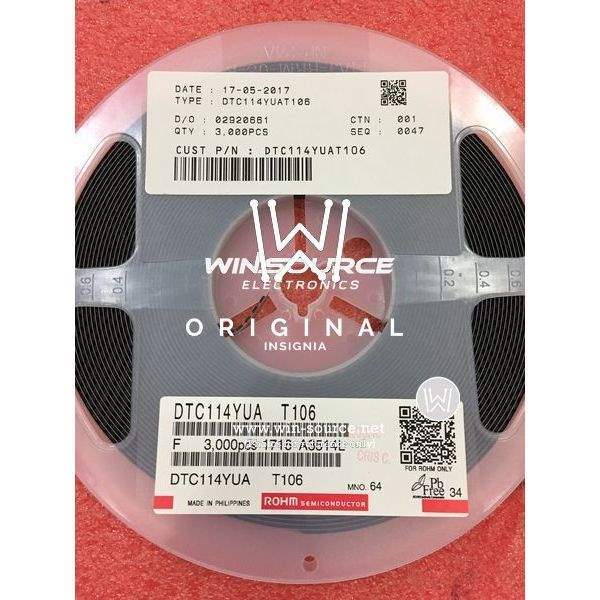

DTC114YUA label picture
Same model may have multiple batches, images only for reference.

DTC114YUA

Part No DTC114YUA
Manufacturer Yangzhou yangjie electronic co., ltd
Catalog Transistors (BJT) - Single, Pre - Biased
Description Transistors - Bipolar (BJT) - Si / Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased + Diode 50 V 100 mA 250 MHz 200 mW Surface Mount SOT-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single, Pre-Biased Bipolar Transistors
Mfr Yangzhou yangjie electronic co., ltd
Package Tape & Reel
Product Status Active
Transistor Type NPN - Pre-Biased + Diode
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Resistor - Base (R1) 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic 300mV @ 250µA, 5mA
Current - Collector Cutoff (Max) 500nA
Frequency - Transition 250 MHz
Power - Max 200 mW
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Base Product Number DTC114
Standard Package 3,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 587562-DTC114YUA
Ultra Librarian 3D Model Ultra Librarian DTC114YUA CAD Model

Description

The 587562-DTC114YUA is a pre-biased NPN transistor with a diode from Yangzhou yangjie electronic co., ltd.

  • Category: Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single, Pre-Biased Bipolar Transistors
  • Applications: Low to medium current applications
  • Power Rating: 200 mW
  • Voltage Breakdown: 50 V
  • Vce Saturation: 300mV @ 250µA and 5mA
  • DC Current Gain (hFE): 68 @ 5mA and 5V
  • Frequency Transition: 250 MHz
  • Package Type: SC-70, SOT-323
  • Packaging: Tape and reel
  • Package Quantity: 3,000 pieces
  • Status: Active
  • REACH: Unaffected
