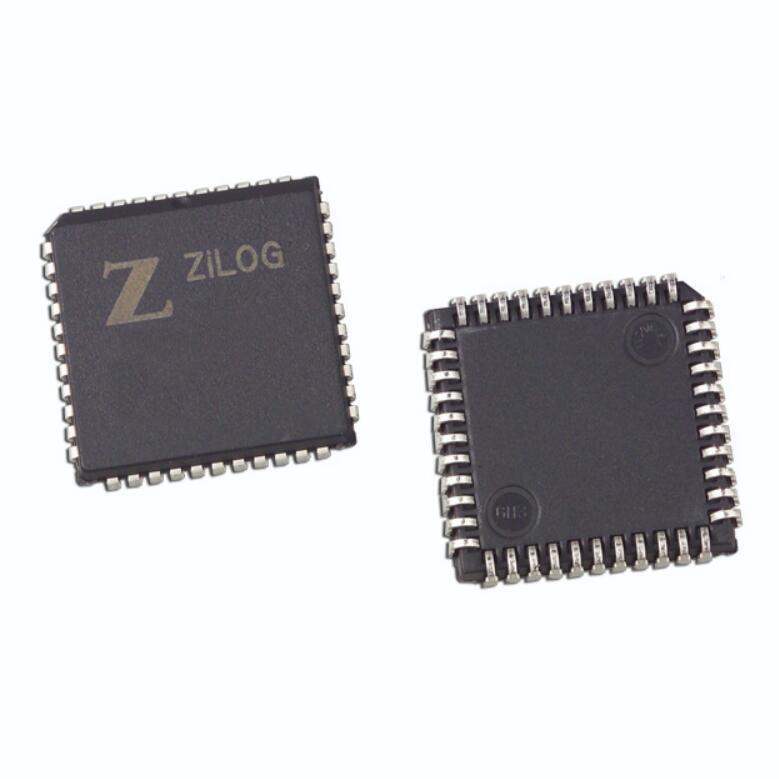

Figure 1 on page 2 and Figure 2 on page 2 display the pins in each functional group for both the Z80230 and Z85230/L. The pin functions are unique to each bus interface version in the Address/Data group, Bus Timing and Reset group, and Device Control group. The Address/Data group consists of the bidirectional lines used to transfer data between the CPU and the ESCC (addresses in the Z80230 are latched by AS). The direction of these lines depends on whether the operation is a Read or a Write operation. The Timing and Control groups designate the type of transaction to occur and the timing of the occurrence. The interrupt group provides inputs and outputs for handling and prioritizing interrupts. The remaining groups are divided into Channel A and Channel B groups for: • Serial Data (Transmit or Receive) • Peripheral Control (such as DMA or modem) • Input and Output Line for the Receive and Transmit Clocks<br />
