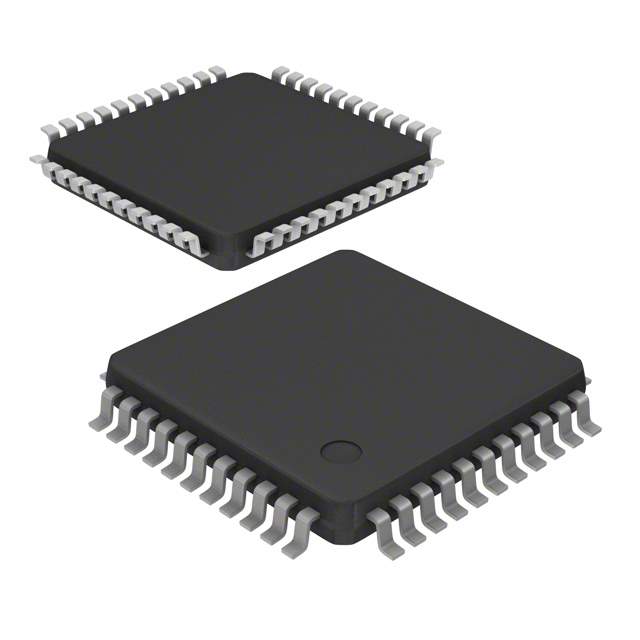

The Z8F6401AN020EC is a member of the Encore! XP® series of microcontrollers from Zilog. This microcontroller is based on the Z8 core and features 64KB of Flash memory and 4KB of SRAM. It is designed for a wide range of embedded control applications.

Applications:

• Motor Control: Controlling the speed and position of motors.
• Industrial Control: Implementing control algorithms in industrial equipment.
• Home Automation: Controlling appliances and devices in smart homes.
• Consumer Electronics: Managing functions in consumer electronic products.
• Security Systems: Implementing security and access control systems.

Features:

• Z8 Core: Executes instructions efficiently.
• 64KB Flash Memory: Stores program code and data.
• 4KB SRAM: Provides working memory for the CPU.
• Timers/Counters: Implements timing and counting functions.
• UART: Supports serial communication.
• SPI: Supports serial peripheral interface.
• I2C: Supports inter-integrated circuit communication.
• ADC: Converts analog signals to digital values.
• PWM: Generates pulse-width modulated signals.

Benefits:

• High Performance: Z8 core provides efficient execution.
• Large Memory: Sufficient memory for complex applications.
• Versatile Peripherals: Supports a wide range of interfaces and functions.
• Low Power Consumption: Suitable for battery-powered applications.

Additional Details:

The Z8F6401AN020EC is typically available in a DIP or SOIC package. It operates from a 3.3V or 5V power supply. The clock frequency is 20MHz. The device can be programmed using a variety of tools. Consult the datasheet for detailed electrical characteristics, pin assignments, and programming information. Proper design and layout are essential for optimal performance.
