Same model may have multiple batches, images only for reference.

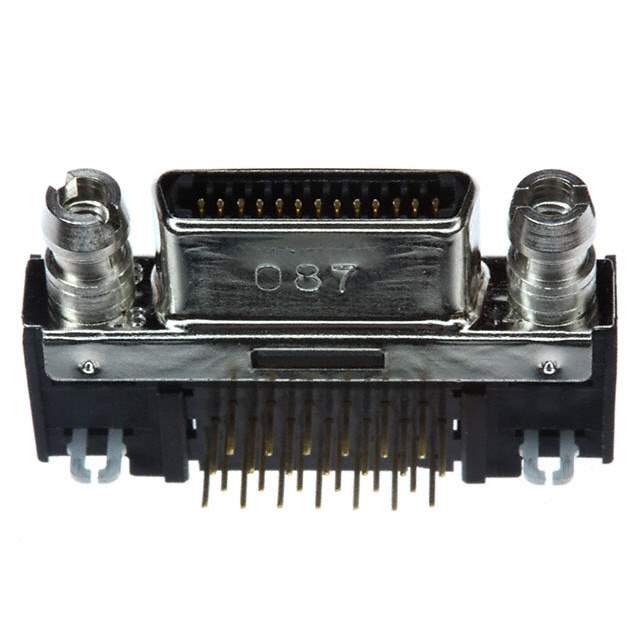

12226-5150-00FR Real Image
Same model may have multiple batches, images only for reference.

12226-5150-00FR

Part No 12226-5150-00FR
Manufacturer 3M
Catalog Unclassified
Description CONN RCPT 26POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 22 Weeks
Features 26 Position Receptacle Connector - Panel Mount, Through Hole, Right Angle Solder
Manufacturer 3M
Series 122, Shrunk D Ribbon (SDR)
Package Tray
Mounting Panel Mount, Through Hole, Right Angle
Family Name 12226
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 54745234028, 7000090311, 4547452340286, 45 47452 34028 6, JE150323127, 12226-5150-00FR-ND, 12226515000FR, MSDR26
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905252-12226-5150-00FR
Ultra Librarian 3D Model Ultra Librarian 12226-5150-00FR CAD Model

Description

The 905252-12226-5150-00FR is a connector component that is designed to provide a secure and reliable connection between electronic devices.

  • Positions: 26 position receptacle connector
  • Design: panel mount, through hole, and right angle solder
  • Series: 12226
  • Category: connector
  • Estimated Production Lead Time: 22 weeks
