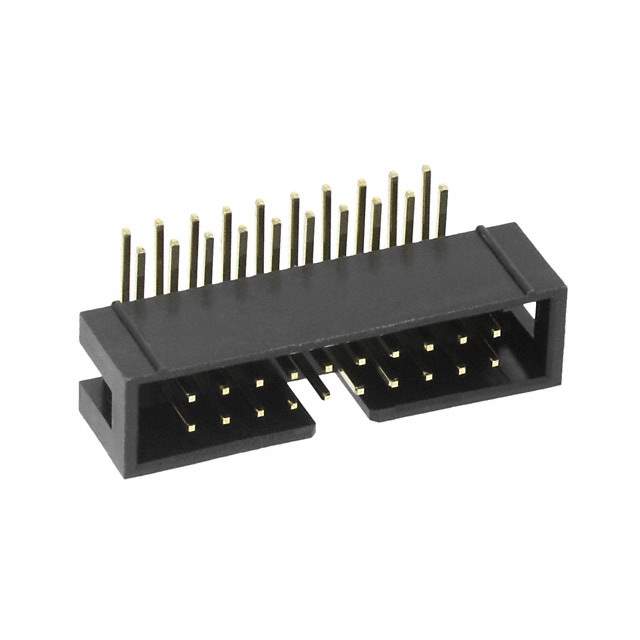

30320-5002HB Real Image
Same model may have multiple batches, images only for reference.

30320-5002HB

Part No 30320-5002HB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 303
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.331" (8.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT) , Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post Flash
Base Product Number 30320
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337352-30320-5002HB
Ultra Librarian 3D Model Ultra Librarian 30320-5002HB CAD Model

Description

The 1337352-30320-5002HB is a 20-position male pin header connector from the 303 series of rectangular connectors.

  • Keying Slot: Yes
  • Connection Type: Board-to-board or cable connections
  • Pitch: 0.100 inches (2.54mm)
  • Insulation Material: Polybutylene terephthalate (PBT) and polyester, glass-filled
  • Contact Finish: Gold with flash thickness
  • Contact Material: Brass
  • Current Rating: 1A
  • Operating Temperature: -55°C to 105°C
  • Flammability Rating: UL94 V-0
  • Design: Shrouded, four-wall
  • Mounting Type: Through-hole, right-angle
  • Packaging: Bulk
  • Suitable for: Various applications, including communication and computer systems
