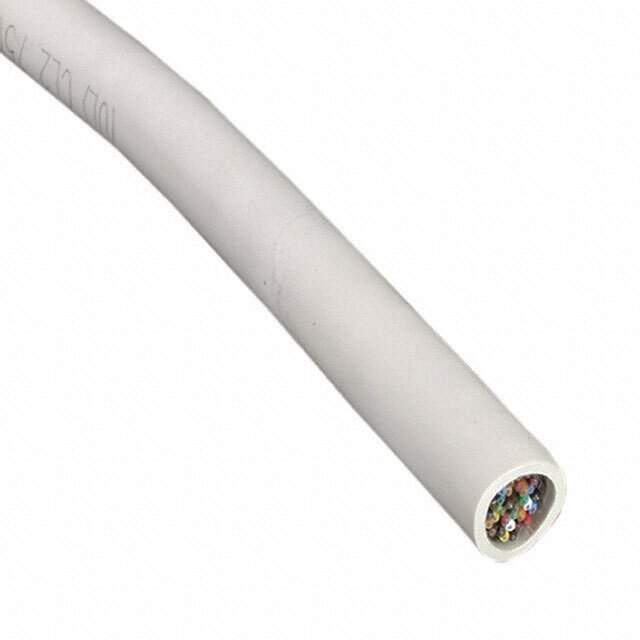

3600G/14 100 Real Image
Same model may have multiple batches, images only for reference.

3600G/14 100

Part No 3600G/14 100
Manufacturer 3M
Catalog Multiple Conductor Cables
Description MULTI-PAIR 14COND 28AWG GRY 100'
Datasheet
3600G/14 100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer 3M
Series 3600X
Cable Type Multi-Pair
Number of Conductors 14 (7 Pair Twisted)
Wire Gauge 28 AWG
Conductor Strand 7/36
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.220" (5.59mm)
Shield Type Foil, Braid
Length 100.0' (30.5m)
Jacket Color Gray
Voltage 30V
Usage Communication, Computer, Control
Jacket (Insulation) Thickness 0.026" (0.66mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 90%
Win Source Part Number 774854-3600G/14 100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3600G/14 100 CAD Model

Description

The 3M 3600X series multi-pair cable is from 3M.

  • Conductors: 14 (7 Pairs)
  • Wire Gauge: 28 AWG
  • Shield: Aluminum and Tinned Copper
  • Shield Coverage: 100% and 90%
  • Conductor Material: Tinned Copper
  • Conductor Strand: 7/36
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Thickness: 0.026" (0.66mm)
  • Cable Diameter: 0.220" (5.59mm)
  • Voltage Rating: 30V
  • Length: 100.0' (30.5m)
