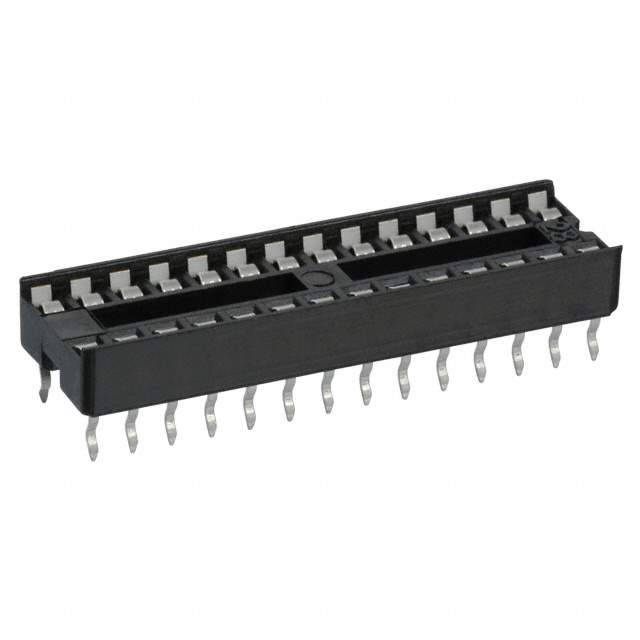

4828-3004-CP Real Image
Same model may have multiple batches, images only for reference.

4828-3004-CP

Part No 4828-3004-CP
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 28POS TIN  /  28 (2 x 14) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr 3M
Series 4800
Package Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 28 (2 x 14)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 35.0µin (0.90µm)
Contact Material - Post Phosphor Bronze
Housing Material Polyester, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Base Product Number 4828
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 00051111752449,5111116010,48283004CP,80000913196,51111160107,80000917973,3M5480,7010501790
Standard Package 5,600
Win Source Part Number 1030223-4828-3004-CP
Ultra Librarian 3D Model Ultra Librarian 4828-3004-CP CAD Model

Description

The 4800 series DIP socket for ICs and transistors is a versatile and reliable component for any electronic application.

  • Frame: Open
  • Termination: Solder
  • Housing Material: Polyester and glass-filled (UL94 V-0 flammability rating)
  • Contact Material: Phosphor bronze (tin finish)
  • Standard Package: 5,600
  • Pitch-Mating: 0.100 inches
  • Contact Finish Thickness (Mating): 35.4μin
  • Contact Finish Thickness (Post): 35.0μin
  • Mounting: Through-Hole
  • Temperature Range: -25°C to 85°C
  • Current Rating: 1A
  • Alternative Parts: 2227MC-28-03-05-F1, 1-2199299-2, 1-390262-2, 1-2199298-8, 34729-0200, 51110-2851, 51353-20004828-3004-CP., and 80000917973
