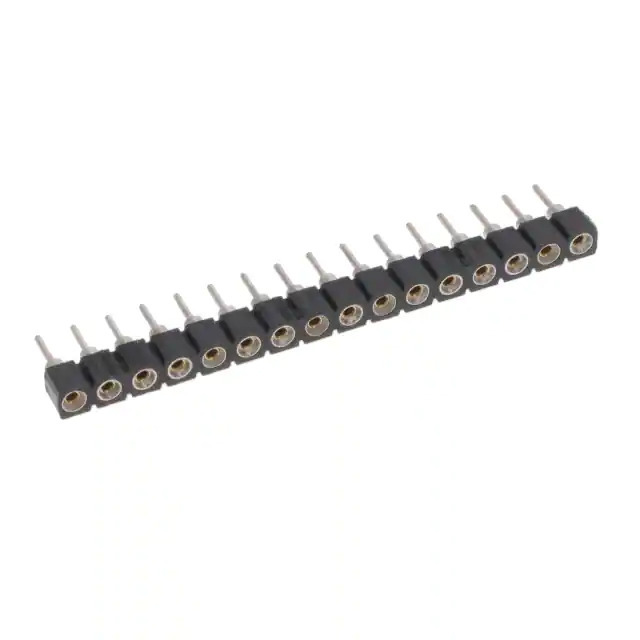

1-1814655-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1814655-1

Part No 1-1814655-1
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN SOCKET SIP 16POS GOLD / 16 (1 x 16) Pos SIP Socket Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Last Time Buy
Type SIP
Number of Positions or Pins (Grid) 16 (1 x 16)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 196.9µin (5.00µm)
Contact Material - Post Brass
Housing Material Thermoplastic, Polyester
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.114" (2.90mm)
Material Flammability Rating UL94 V-0
Contact Resistance 10mOhm
Base Product Number 1814655
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363454-1-1814655-1
Ultra Librarian 3D Model Ultra Librarian 1-1814655-1 CAD Model

Description

The TE Connectivity AMP Connectors 1363454-1-1814655-1 is a SIP type IC socket.

  • Mounting Type: Through Hole
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 16 (1 x 16)
  • Frame Type: Closed
  • Contact Material (Mating): Beryllium Copper
  • Contact Finish (Mating): Gold
  • Contact Material (Post): Brass
  • Contact Finish (Post): Tin
  • Contact Resistance: 10mOhm
  • Temperature Range: -55°C to 125°C
  • Housing Material: Thermoplastic and Polyester
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Product Status: Last Time Buy
