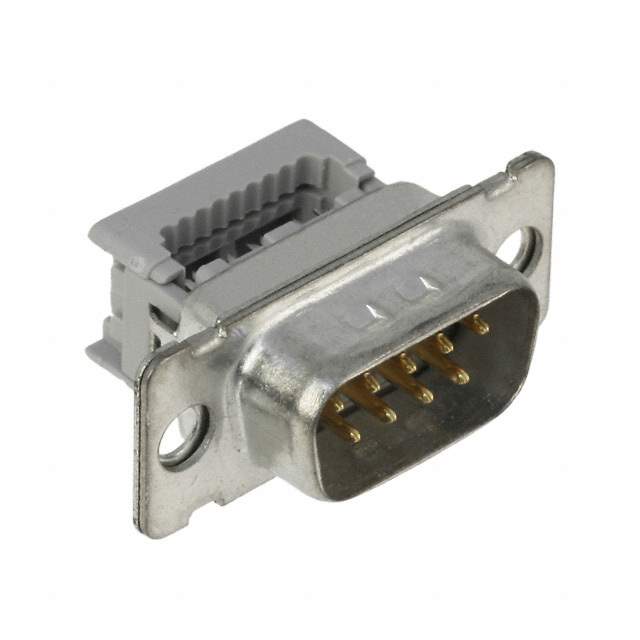

8209-6009 Real Image
Same model may have multiple batches, images only for reference.

8209-6009

Part No 8209-6009
Manufacturer 3M
Catalog Hard To Find
Description 3M D Sub Plug Plug Connector | CONN D-SUB PLUG 9POS PNL MNT IDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Style Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Features Feed Through, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Temperature Range - Operating -55°C ~ 105°C
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Copper Alloy
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1133879-8209-6009
Manufacturer Homepage www.3m.comesd
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 8209-6009 CAD Model

Description

The 3M 8209-6009 is a high-quality D-sub connector that is designed to provide reliable performance in a range of electronic applications.

  • Number of Positions: 9
  • Mounting Style: panel mount
  • Package: bulk
  • Quantity: 200
  • Popularity: popular choice among designers and engineers
  • Suitability: ideal for use in a range of applications, including computers, telecommunications, and other electronic circuits where a high-quality, reliable connector is required
