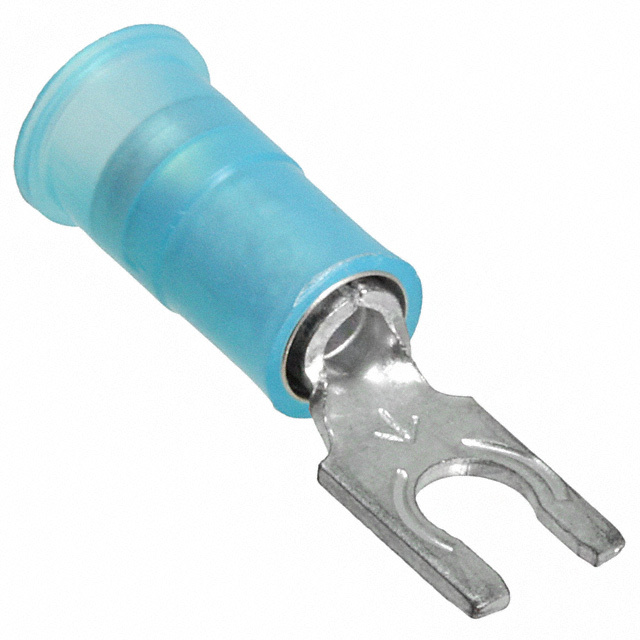

Same model may have multiple batches, images only for reference.
82F-156-NBL-A 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

82F-156-NBL-A

Part No 82F-156-NBL-A
Manufacturer 3M
Catalog Terminals
Description CONN TERM RCPT 14-16AWG CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.156" (3.96mm)
Wire Gauge 14-16 AWG
Length - Overall 1.020" (25.91mm)
Length - Barrel 0.250" (6.35mm)
Insulation Fully Insulated
Termination Crimp
Color Blue
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1636407-82F-156-NBL-A
Ultra Librarian 3D Model Ultra Librarian 82F-156-NBL-A CAD Model
