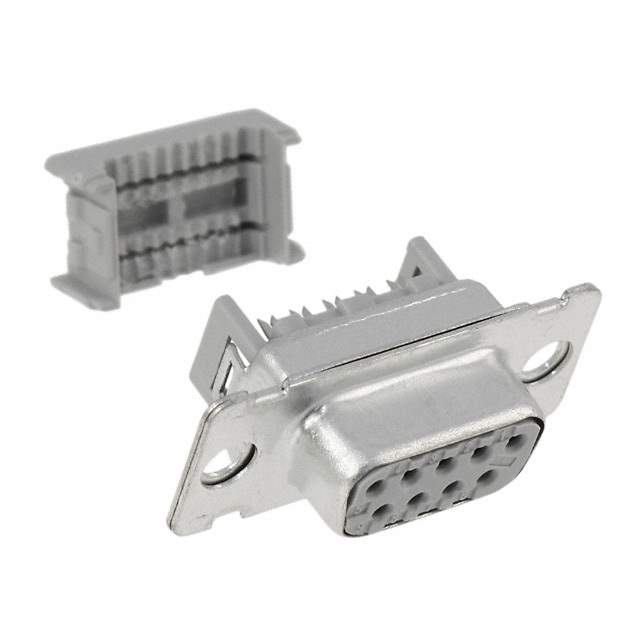

8309-7000 Real Image
Same model may have multiple batches, images only for reference.

8309-7000

Part No 8309-7000
Manufacturer 3M
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS PNL MNT IDC / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer 3M
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 26-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 8309
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 7100170828,5400736808,-8309-7000,05400736808,83097000,80610186118,54007368083,UU009268127,7010348475,04054596588745
Standard Package 100
Win Source Part Number 1333161-8309-7000
Ultra Librarian 3D Model Ultra Librarian 8309-7000 CAD Model

Description

The 3M 1333161-8309-7000 is a D-sub connector assembly designed to be used with ribbon cables.

  • Positions: 9
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Temperature Range: -55°C to 105°C
  • Housing Material: Polybutylene Terephthalate (PBT) and Polyester which is glass filled
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Packaging: Bulk
  • Standard Package: 100
