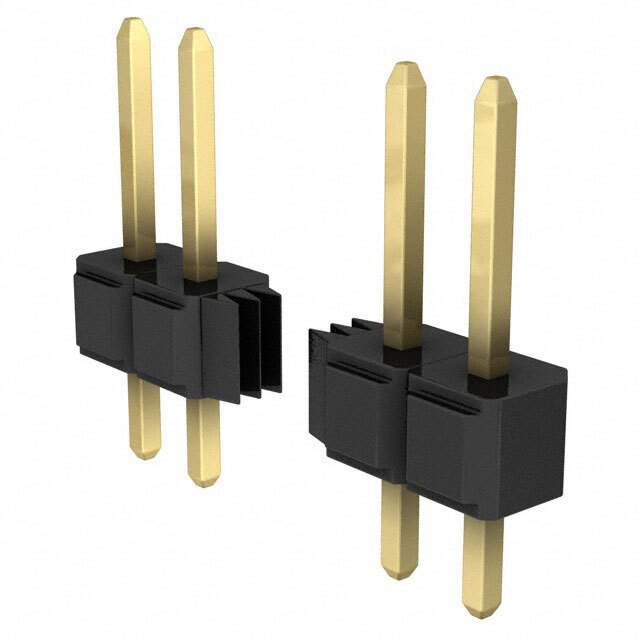

Same model may have multiple batches, images only for reference.

929647-01-06-I

Name: 929647-01-06-I
Brand: 3M
SKU: 1169783
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	929647-01-06-I
Manufacturer	3M
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	929
Package	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.235" (5.97mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.445" (11.30mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.5A
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	929647
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	929647-01-06-ND,5113882700,929647E-01-06,9296470106I,929647E-01-06-ND,929647-01-06,51138827007,3M156515-06,80610489108
Standard Package	1
Win Source Part Number	1169783-929647-01-06-I
Ultra Librarian 3D Model	Ultra Librarian 929647-01-06-I CAD Model

Alternative Products

Description

This 929 series male pin header connector is designed for use in rectangular connectors.

Series: 929
Connector Type: breakaway
Termination: soldered
Contact Material: copper alloy
Insulation Material: polybutylene terephthalate (PBT), polyester, glass filled
Contact Finish: gold with a thickness of 10.0µin (0.25µm) for mating and post
Connector: unshrouded
Contact Shape: square
Current Rating: 2.5A
Operating Temperature Range: -40°C to 105°C
Package: bulk
Application: board to board
