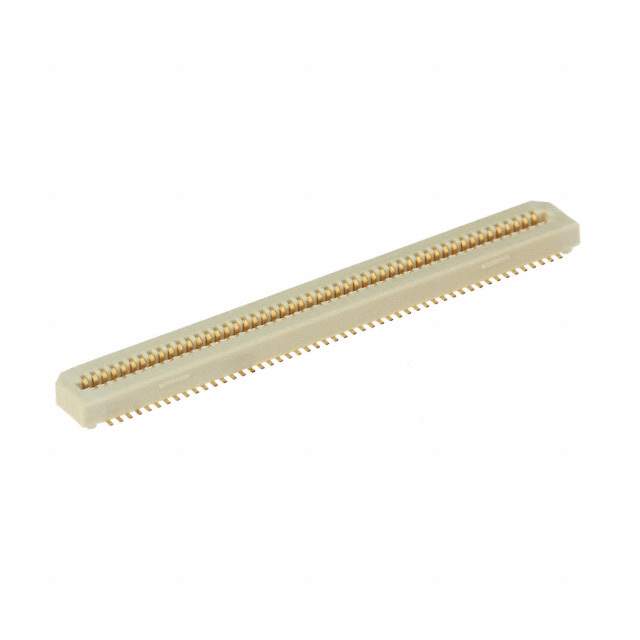

Same model may have multiple batches, images only for reference.

P08-100SL-A-G

Name: P08-100SL-A-G
Brand: 3M
SKU: 1338662
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	P08-100SL-A-G
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN SOCKET 100POS SMD GOLD / 100 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	3M
Series	P08
Package	Tube
Product Status	Obsolete
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	100
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3mm, 4mm, 5mm
Height Above Board	0.087" (2.20mm)
Base Product Number	P08
Standard Package	300
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338662-P08-100SL-A-G
Ultra Librarian 3D Model	Ultra Librarian P08-100SL-A-G CAD Model

Alternative Products

Description

This P08 series connector array is a socket type with outer shroud contacts and 100 positions.

Type: Socket
Contacts: Outer Shroud
Positions: 100
Pitch: 0.031 inches
Rows: 2
Features: Board Guide
Contact Finish: Gold
Contact Finish Thickness: 8.00 micro inches
Height Above Board: 0.087 inches
Mounting: Surface Mount
Standard Package: 300
