TP5534-TR 3Peak – Price, Stock & Datasheet

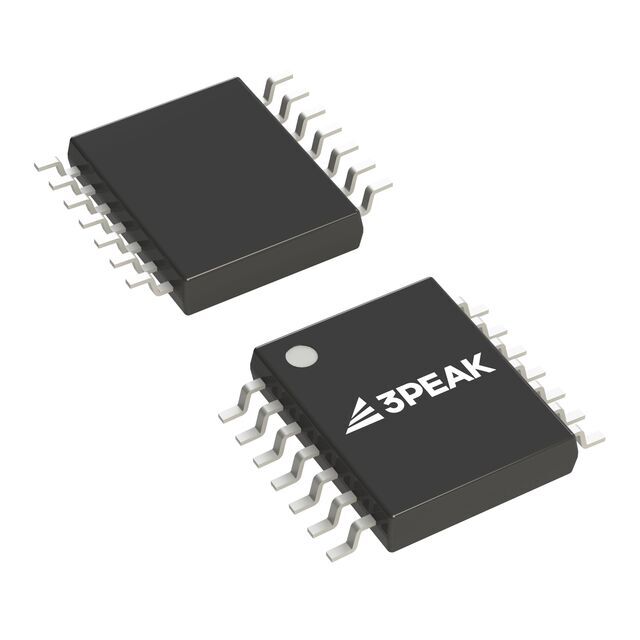

Same model may have multiple batches, images only for reference.

TP5534-TR

Part No TP5534-TR
Manufacturer 3Peak
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Chopper (Zero-Drift) Amplifier 4 Circuit Single Ended, Rail-to-Rail 14-TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr 3PEAK
Series TP553x
Packaging Reel - TR
Amplifier Type Chopper (Zero-Drift)
Number of Circuits 4
Output Type Single Ended, Rail-to-Rail
Slew Rate 0.16V/µs
Gain Bandwidth Product 350 kHz
Current - Input Bias 50 pA
Voltage - Input Offset 1 µV
Current - Supply 42µA (x4 Channels)
Current - Output / Channel 60 mA
Voltage - Supply Span (Min) 1.8 V
Voltage - Supply Span (Max) 5.5 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1478055-TP5534-TR
Ultra Librarian 3D Model Ultra Librarian TP5534-TR CAD Model
