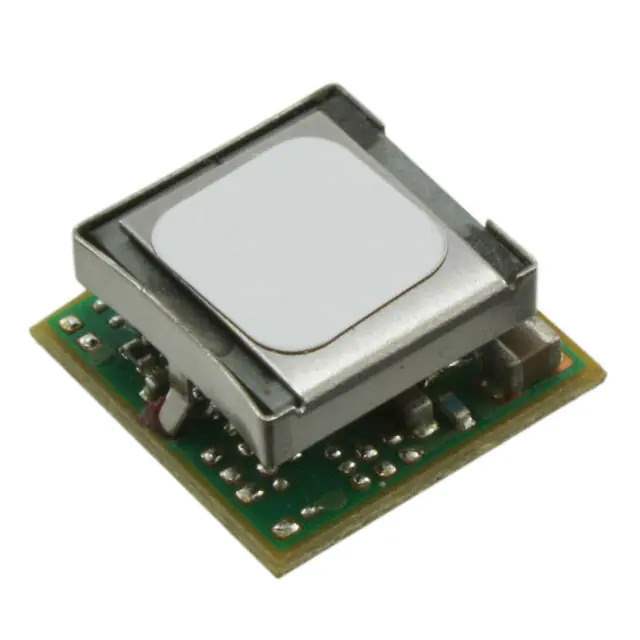

Same model may have multiple batches, images only for reference.

APTS006A0X4-SRZ

Name: APTS006A0X4-SRZ
Brand: ABB Embedded Power
SKU: 564243
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	APTS006A0X4-SRZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.5V 33W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 4.5V - 14V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	PicoTLynx™
Package	Tape & Reel
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 5.5V
Current - Output (Max)	6A
Power (Watts)	33 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Surface Mount
Package / Case	10-SMD Module
Size / Dimension	0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm)
Control Features	Enable, Active High
Base Product Number	APTS006
Standard Package	400 pcs
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	564243-APTS006A0X4-SRZ
Ultra Librarian 3D Model	Ultra Librarian APTS006A0X4-SRZ CAD Model

Alternative Products

Description

The PicoTLynx™ 564243-APTS006A0X4-SRZ is a non-isolated PoL module designed for power supplies in board mount applications.

Product Name: 564243-APTS006A0X4-SRZ
Series: PicoTLynx™
Manufacturer: ABB Embedded Power
Type: Non-Isolated PoL Module
Application: Power Supplies, Board Mount
Power Rating: 33W
Maximum Output Current: 6A
Features: Remote On/Off, OCP, OTP, UVLO
Input Voltage: 4.5V to 14V
Output Voltage: 0.6V to 5.5V
Mounting Type: Surface Mount
Package: 10-SMD
Operating Temperature: -40°C to 85°C
Status: Active
Standard Package: 400 pcs
Efficiency: 91%
