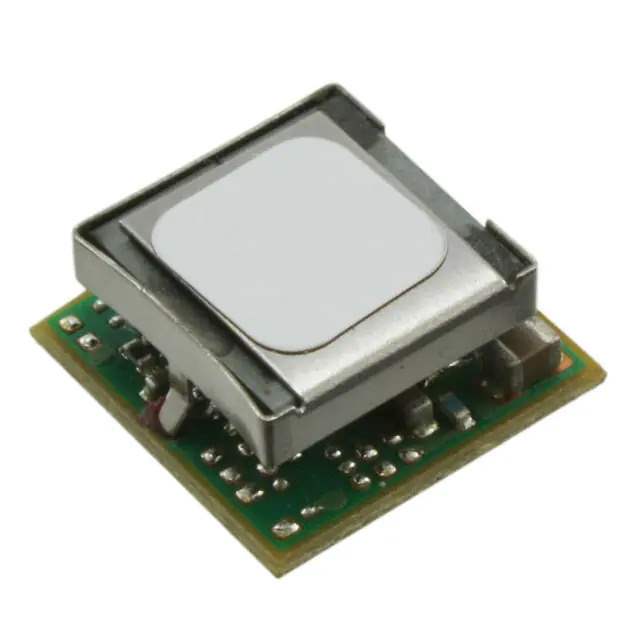

Same model may have multiple batches, images only for reference.

APXS006A0X-SRZ

Name: APXS006A0X-SRZ
Brand: ABB Embedded Power
SKU: 564317
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	APXS006A0X-SRZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.5V 33W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 4.5V - 14V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	PicoTLynx™
Package	Tape & Reel
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 5.5V
Current - Output (Max)	6A
Power (Watts)	33 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93%
Mounting Type	Surface Mount
Package / Case	10-SMD Module
Size / Dimension	0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm)
Control Features	Enable, Active Low
Base Product Number	APXS006
Standard Package	400 pcs
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	564317-APXS006A0X-SRZ
Ultra Librarian 3D Model	Ultra Librarian APXS006A0X-SRZ CAD Model

Alternative Products

Description

The PicoTLynx™ series is known for its compact size and high efficiency.

Product: 564317-APXS006A0X-SRZ
Type: Non-Isolated PoL Module
Max Output Current: 6A
Input Voltage Range: 4.5V to 14V
Output Voltage: 0.6V to 5.5V
Features: Remote On/Off, OCP, OTP, UVLO
Size: 0.48" L x 0.48" W x 0.29" H
Application: ITE (Commercial)
Mounting: Surface Mountable
Package: Tape & Reel
Operating Temperature: -40°C to 85°C
Efficiency: 93%
Manufacturer: ABB Embedded Power
Status: Active
Standard Package: 400 pcs
