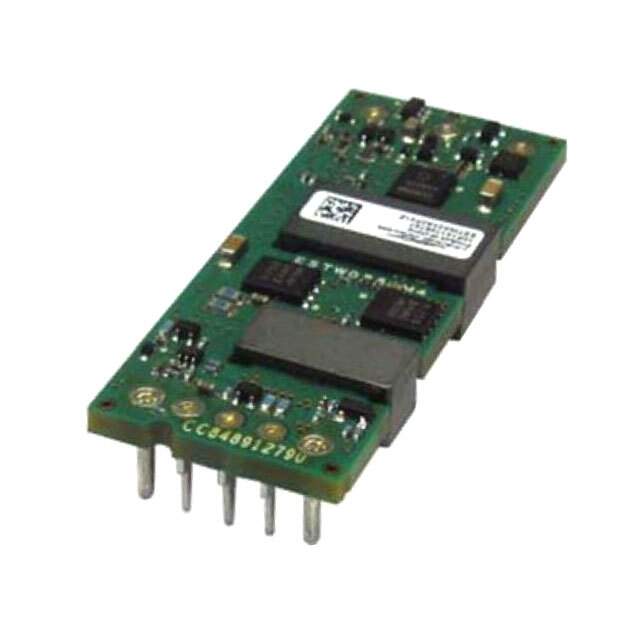

Same model may have multiple batches, images only for reference.

ESTW036A0F41Z

Name: ESTW036A0F41Z
Brand: ABB Embedded Power
SKU: 1338852
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ESTW036A0F41Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 120W / Isolated Module DC DC Converter 1 Output 3.3V 36A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Barracuda™ ESTW036A0F (120W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	36A
Power (Watts)	120 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91.5%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Size / Dimension	2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
Control Features	Enable, Active Low
Base Product Number	ESTW036
Standard Package	36
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338852-ESTW036A0F41Z
Ultra Librarian 3D Model	Ultra Librarian ESTW036A0F41Z CAD Model

Alternative Products

Description

The ABB Power Electronics Inc. Barracuda™ ESTW036A0F (120W) is an isolated module DC-DC converter that has a power rating of 120W and a voltage isolation of 2.25kV.

Power Rating: 120W
Voltage Isolation: 2.25kV
Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size: 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
Mounting Type: Through Hole
Input Voltage: 36V to 75V
Output Voltage: 3.3V
