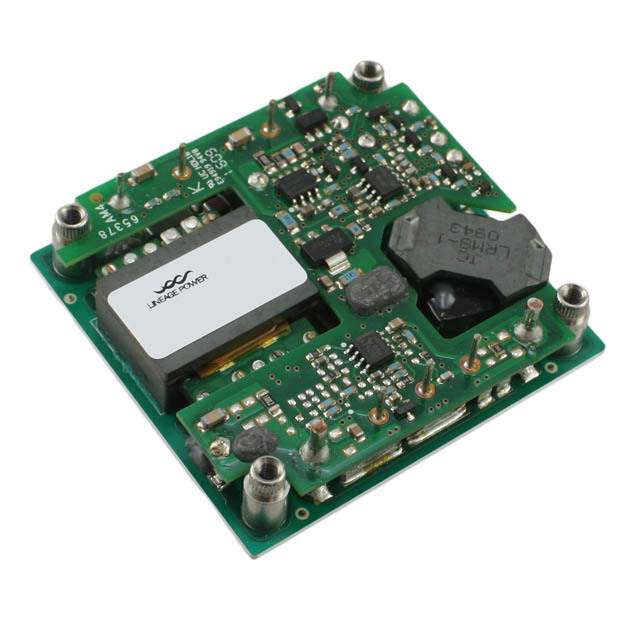

JC075B1

Get a Quote

Part No	JC075B1
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.3A 18V - 36V Input
Datasheet	JC075B1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	JC075 (75W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	6.3A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	9-DIP Module
Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features	Enable, Active Low
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	107310005
Standard Package	40
Win Source Part Number	1066270-JC075B1
Ultra Librarian 3D Model	Ultra Librarian JC075B1 CAD Model

Alternative Products

Description

The JC075B1 part number 1066270 is a power supply board mount DC DC converter. The series JC075 (75W) has a power rating of 75 W and an efficiency of 85%. The control features of this component include enable, active low. The voltage isolation is 1.5 kV and the number of outputs is 1. The voltage input range is 18V to 36V and the voltage output 1 is 12V. The temperature range for operating this component is -40°C to 100°C. The package is 9-DIP module.
