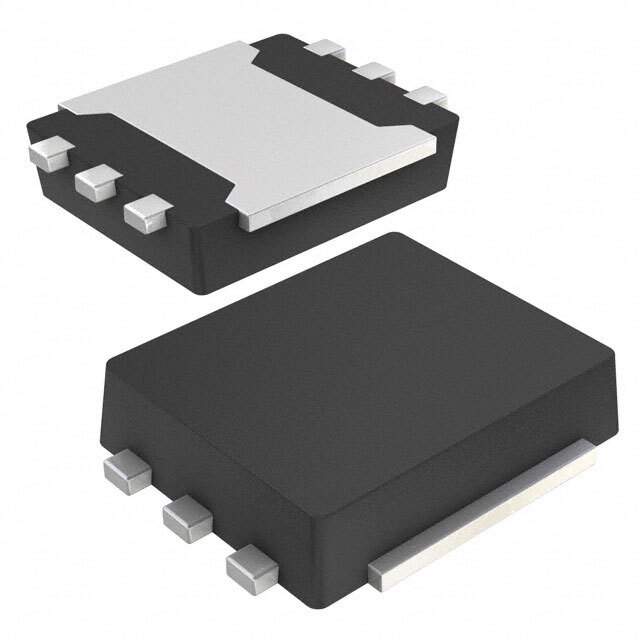

The S-1135D23-A6T1U is a positive voltage regulator IC manufactured by ABLIC U.S.A. Inc. It is part of the S-1135 series, which is known for low current consumption and high accuracy voltage regulation. This specific model is designed to provide a stable output voltage, even when the input voltage or load current fluctuates.

Applications

• Power supply for portable navigation devices
• Voltage regulation in remote control systems
• Battery-powered security keypads
• Power management for low-power display modules
• Regulation in compact industrial control panels

Features

• Output Voltage: 2.3V
• Input Voltage Range: 2.0V to 5.5V
• Output Voltage Accuracy: ±1.0%
• Low Current Consumption: 9.0μA (typical)
• Package: SOT-25A
• Overcurrent Protection: Protects the IC from excessive current draw.
• Thermal Shutdown Circuit: Prevents the IC from overheating and being damaged.
• Low Dropout Voltage: Enables efficient regulation even with minimal voltage difference between input and output.

Benefits

• Consistent Voltage Output: Ensures the stable operation of connected electronic devices.
• Prolonged Battery Life: Minimal current draw maximizes the operating time of battery-powered applications.
• Precise Voltage Regulation: Accurate voltage output is essential for sensitive electronic components.
• Compact Size: Small SOT-25A package allows for easy integration into space-constrained designs.
• Reliable Performance: Built-in protection features ensure robust and dependable operation.
• Simplified Circuit Design: Reduces the need for external components, streamlining circuit design and lowering costs.

The S-1135D23-A6T1U voltage regulator is designed for applications requiring a stable, accurate, and efficient voltage supply in a small form factor. Its built-in protection features and low current consumption make it an excellent choice for a variety of portable and battery-powered devices, enhancing overall performance and longevity.
