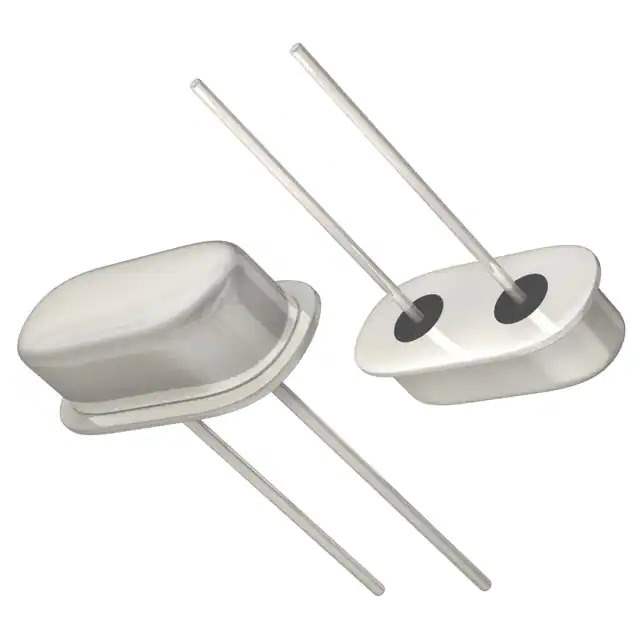

ABL-12.000MHZ-B2 Real Image ABL-12.000MHZ-B2 Real Image2 ABL-12.000MHZ-B2 Real Image3 ABL-12.000MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.
ABL-12.000MHZ-B2 Real Image ABL-12.000MHZ-B2 Real Image2 ABL-12.000MHZ-B2 Real Image3 ABL-12.000MHZ-B2 Real Image
ABL-12.000MHZ-B2 Real Image ABL-12.000MHZ-B2 Real Image2 ABL-12.000MHZ-B2 Real Image3 ABL-12.000MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-12.000MHZ-B2

Part No ABL-12.000MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF TH / 12 MHz ±20ppm Crystal 18pF 50 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1351444-ABL-12.000MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-12.000MHZ-B2 CAD Model

Description

The 1351444-ABL-12.000MHZ-B2 is a through-hole mounting type MHz crystal from Abracon LLC's ABL series.

  • Mounting Type: Through Hole
  • Series: ABL
  • Packaging: Bulk
  • Size: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Height: 0.138" (3.50mm)
  • Frequency: 12 MHz
  • ESR: 50 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Operating Temperature: -20°C to 70°C
  • REACH: Unaffected
  • HTSUS: 8541.60.0050
