Same model may have multiple batches, images only for reference.

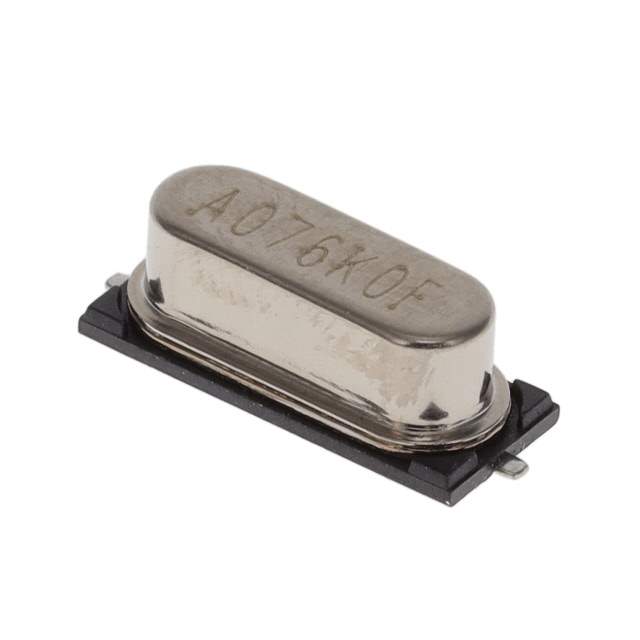

ABLS-7.680MHZ-D-4-Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS-7.680MHZ-D-4-Y-T

Part No ABLS-7.680MHZ-D-4-Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 7.6800MHZ 18PF SMD / 7.68 MHz ±30ppm Crystal 18pF 100 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS
Package Tape & Reel
Type MHz Crystal
Frequency 7.68 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-14940-2,535-14940-1,535-14940-6
Standard Package 1,000
Win Source Part Number 1039883-ABLS-7.680MHZ-D-4-Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS-7.680MHZ-D-4-Y-T CAD Model

Description

The ABLS-7.680MHZ-D-4-Y-T is a crystal oscillator that is designed for electronic devices.

  • Frequency: 7.68 MHz
  • Frequency Tolerance: ±30ppm
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 85°C
  • Design: surface mount
  • Package Size: HC-49/US
