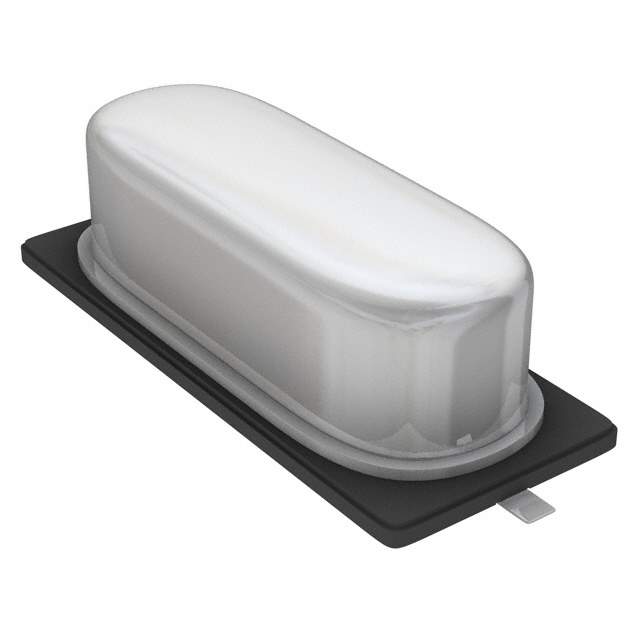

ABLS2-12.000MHZ-D4Y-T Real Image1 ABLS2-12.000MHZ-D4Y-T Real Image2
Same model may have multiple batches, images only for reference.
ABLS2-12.000MHZ-D4Y-T Real Image1 ABLS2-12.000MHZ-D4Y-T Real Image2
ABLS2-12.000MHZ-D4Y-T Real Image1 ABLS2-12.000MHZ-D4Y-T Real Image2
Same model may have multiple batches, images only for reference.

ABLS2-12.000MHZ-D4Y-T

Part No ABLS2-12.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Datasheet
ABLS2-12.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9869-6,ABLS212000MHZD4YT,535-9869-1,535-9869-2
Standard Package 1,000
Win Source Part Number 1199438-ABLS2-12.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-12.000MHZ-D4Y-T CAD Model

Description

The ABLS2-12.000MHZ-D4Y-T is a MHz crystal.

  • Frequency: 12 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±30ppm
  • Load Capacitance: 18pF
  • ESR: 50 Ohms
  • Height: 0.130” (3.30mm)
  • Package: HC-49/US
  • Temperature Range: -40°C to 85°C
  • REACH: affected
  • HTSUS: 8541.60.0050
  • ECCN: EAR99
