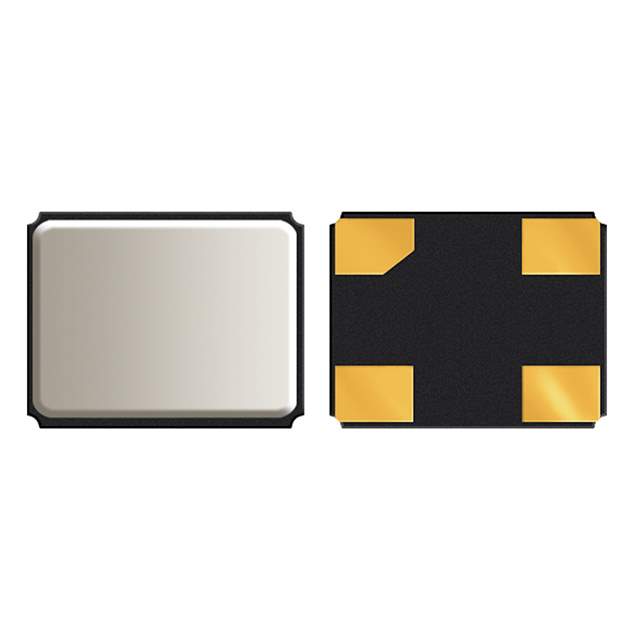

ABM10-19.200MHZ-D30-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10-19.200MHZ-D30-T3

Part No ABM10-19.200MHZ-D30-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 19.2000MHZ 10PF SMD / 19.2 MHz ±20ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Datasheet
ABM10-19.200MHZ-D30-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 19.2 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-10927-2,535-10927-1,ABM1019200MHZD30T3,535-10927-6
Standard Package 3,000
Win Source Part Number 1035117-ABM10-19.200MHZ-D30-T3
Ultra Librarian 3D Model Ultra Librarian ABM10-19.200MHZ-D30-T3 CAD Model

Description

The ABM10 crystal from Abracon LLC has a frequency of 19.2 MHz and is available in tape and reel packaging.

  • Frequency: 19.2 MHz
  • Packaging: tape and reel
  • Mounting: SMD
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • ESR: 150 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • Series: ABM10
  • Standard Package: 3000
  • Regulation: EAR99
  • MSL Level: Not Applicable
  • REACH: Not affected by REACH
  • ECCN: EAR99
