Same model may have multiple batches, images only for reference.

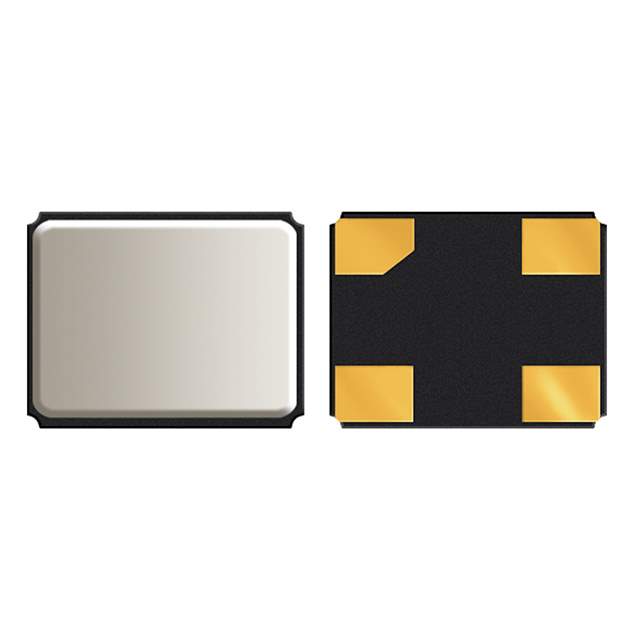

ABM10-24.000MHZ-D30-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10-24.000MHZ-D30-T3

Part No ABM10-24.000MHZ-D30-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM10-24.000MHZ-D30-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-10930-6,Q10837287,535-10930-2,535-10930-1,ABM1024000MHZD30T3
Standard Package 3,000
Win Source Part Number 1125958-ABM10-24.000MHZ-D30-T3
Ultra Librarian 3D Model Ultra Librarian ABM10-24.000MHZ-D30-T3 CAD Model

Description

The ABM10 series MHz crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Package: tape & reel
  • Standard Package: 3,000
  • Frequency: 24 MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 10pF
  • Mounting Technology: SMD (SMT)
  • Height: 0.028" (0.70mm)
  • Operating Temperature: -40°C ~ 85°C
  • ESR: 100 Ohms
  • REACH: Unaffected
