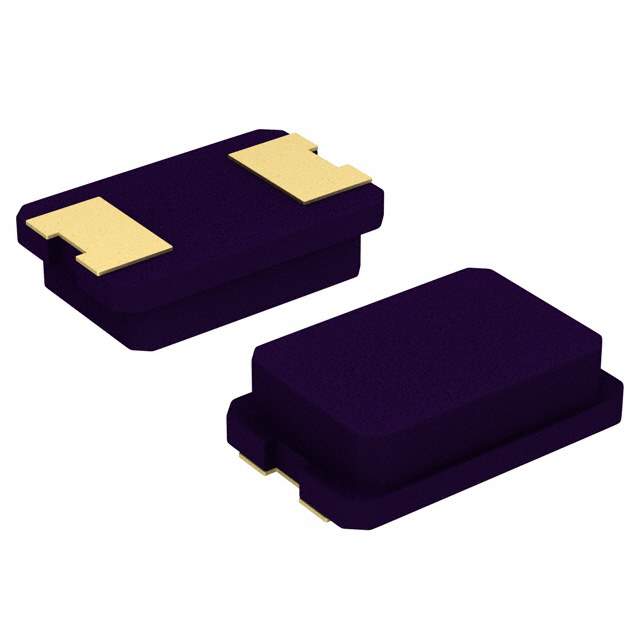

ABM3-11.0592MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-11.0592MHZ-D2Y-T

Part No ABM3-11.0592MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 11.0592MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Abracon LLC
Packaging Reel
Type MHz Crystal
Frequency 11.0592MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808409-ABM3-11.0592MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM3-11.0592MHZ-D2Y-T CAD Model

Description

The Abracon LLC MHz crystal is a surface-mount device with a frequency of 11.0592MHz.

  • ESR: 60 ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 1,000
