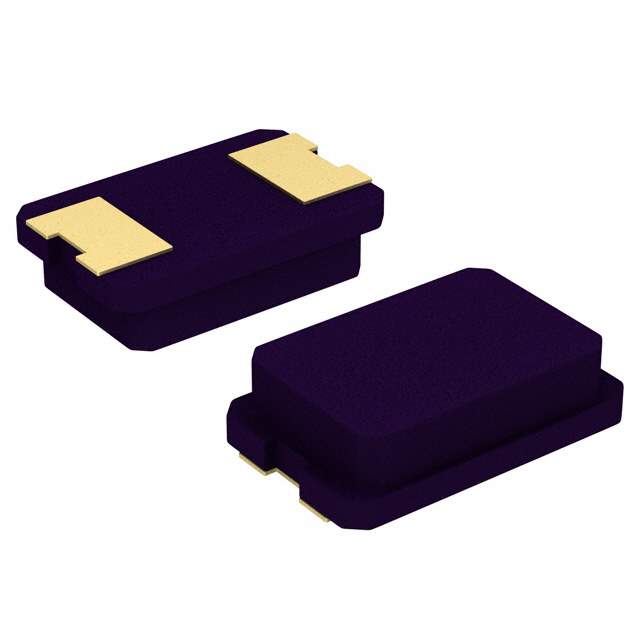

ABM3-16.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-16.000MHZ-B2-T

Part No ABM3-16.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Other Names 535-9103-6,300-9103-2,300-9103-1,ABM316000MHZB2T,535-9103-2,300-9103-1,300-9103-2,535-9103-1
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1285020-ABM3-16.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABM3-16.000MHZ-B2-T CAD Model

Description

The ABM3 series MHz crystal is a surface mount crystal oscillator that measures 0.197 inches in length and 0.126 inches in width.

  • Frequency: 16 MHz
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Temperature Range: -20°C to 70°C
  • Manufacturer: Abracon LLC
