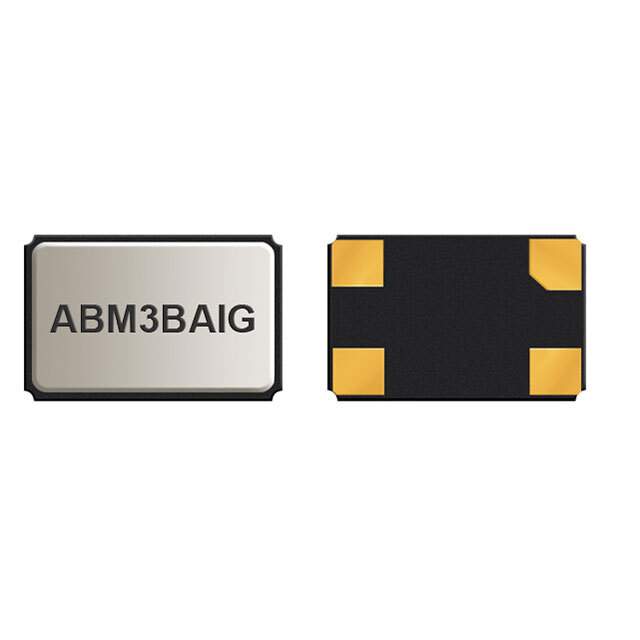

ABM3BAIG-24.000MHZ-12-1Z-T Real Image
Same model may have multiple batches, images only for reference.

ABM3BAIG-24.000MHZ-12-1Z-T

Part No ABM3BAIG-24.000MHZ-12-1Z-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 12PF SMD / 24 MHz ±10ppm Crystal 12pF 30 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3BAIG
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±10ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-15251-6,535-15251-1,535-15251-2
Standard Package 1,000
Win Source Part Number 1222634-ABM3BAIG-24.000MHZ-12-1Z-T
Ultra Librarian 3D Model Ultra Librarian ABM3BAIG-24.000MHZ-12-1Z-T CAD Model

Description

The ABM3BAIG series MHz crystal is a surface mount crystal oscillator that measures 0.197 inches in length and 0.126 inches in width.

  • Manufacturer: Abracon LLC
  • Frequency: 24MHz
  • ESR: 30 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12pF
  • Operating Mode: Fundamental
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Temperature Range: -40°C to 125°C
