Same model may have multiple batches, images only for reference.

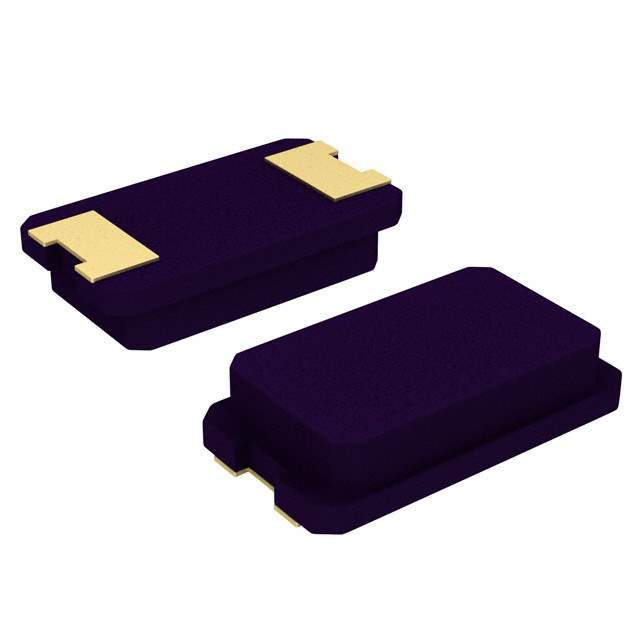

ABM7-13.560MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-13.560MHZ-D2Y-T

Part No ABM7-13.560MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 13.5600MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 32 Weeks
Features ±20ppm Crystal 18pF 2-SMD, No Lead
Manufacturer Abracon LLC
Series ABM7
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 2-SMD, No Lead
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number 535-13418-1, ABM7-13.560MHZ-D2Y-T-ND, 535-13418-6, 535-13418-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859182-ABM7-13.560MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM7-13.560MHZ-D2Y-T CAD Model

Description

The Abracon LLC 859182-ABM7-13.560MHZ-D2Y-T is a surface mount crystal with a frequency of 13.560MHz and a frequency tolerance of ±20ppm.

  • Frequency: 13.560MHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • ESR: 70kOhms
  • Applications: Microcontrollers, sensors, and communication devices
  • Package Size: 2-SMD, No Lead
  • REACH: Affected
  • Production Lead Time: Estimated production lead time of 32 weeks
  • MSL Level: Not applicable
  • Packaging: Reels of 1000
