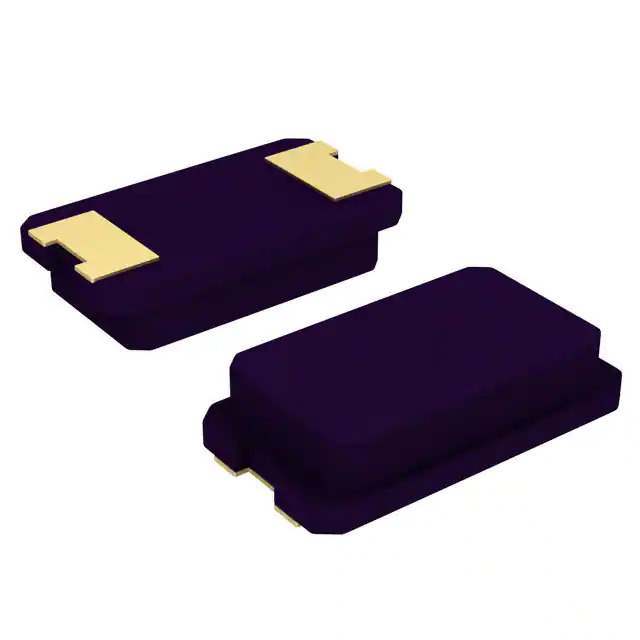

ABM7-25.000MHZ-D2Y-T

Part No ABM7-25.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM7
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 849326-ABM7-25.000MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM7-25.000MHZ-D2Y-T CAD Model

Description

The ABM7-25.000MHZ-D2Y-T is a MHz Crystal from the ABM7 series by Abracon LLC.

  • Mounting Type: Surface Mount
  • Package Size: 0.236" L x 0.138" W (6.00mm x 3.50mm)
  • Seated Height: 0.055" (1.40mm)
  • Frequency: 25 MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Temperature Range: -40°C to 85°C
