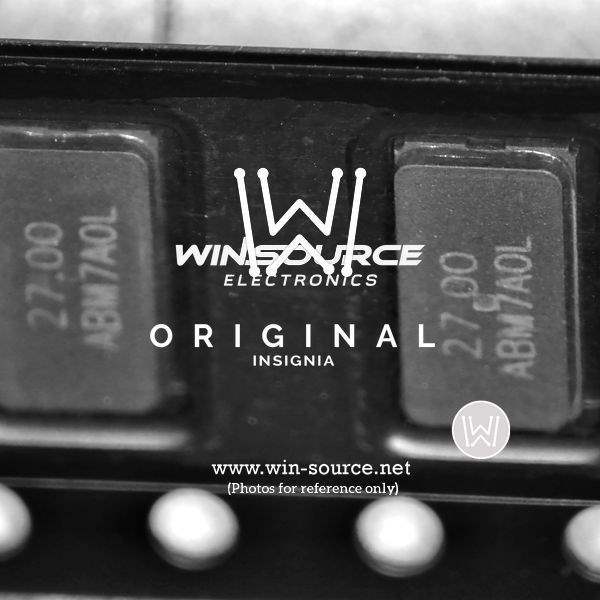

ABM7-27.000MHZ-D2Y-T Real Image ABM7-27.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.
ABM7-27.000MHZ-D2Y-T Real Image ABM7-27.000MHZ-D2Y-T Real Image
ABM7-27.000MHZ-D2Y-T Real Image ABM7-27.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-27.000MHZ-D2Y-T

Part No ABM7-27.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 27.0000MHZ 18PF SMD
Datasheet
ABM7-27.000MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ABM7
Packaging Reel package
Type MHz Crystal
Frequency 27MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Maximum) 0.055" (1.40mm)
Win Source Part Number 766875-ABM7-27.000MHZ-D2Y-T
Popularity Medium
Supply and Demand Status Limited
Family Name ABM7
Introduction Date September 29, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025

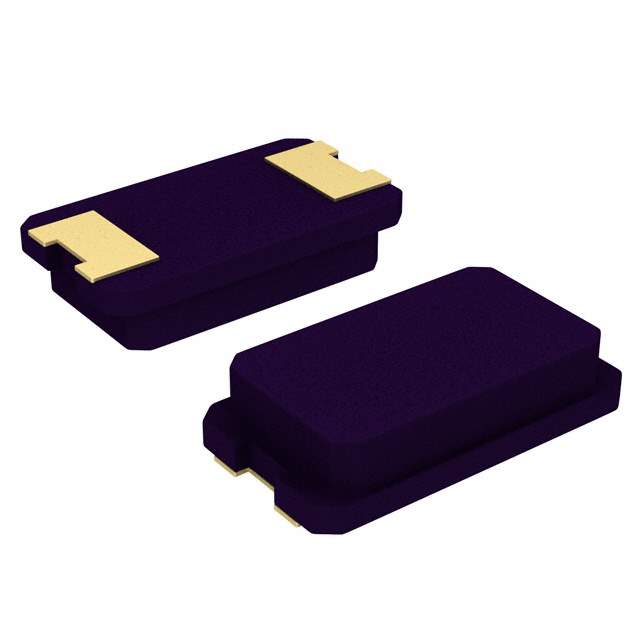

Ultra Librarian 3D Model Ultra Librarian ABM7-27.000MHZ-D2Y-T CAD Model

Description

The Abracon LLC ABM7-27.000MHZ-D2Y-T is a MHz crystal that has a frequency of 27MHz.

  • Frequency: 27MHz
  • Load Capacitance: 18pF
  • ESR: 50 Ohm
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Operating Temperature Range: -40 °C ~ 85 °C
  • Package: 2-SMD, No Lead
  • Dimension: 0.236" L x 0.138" W (6.00mm x 3.50mm)
  • Height - Seated (Maximum): 0.055" (1.40mm)
