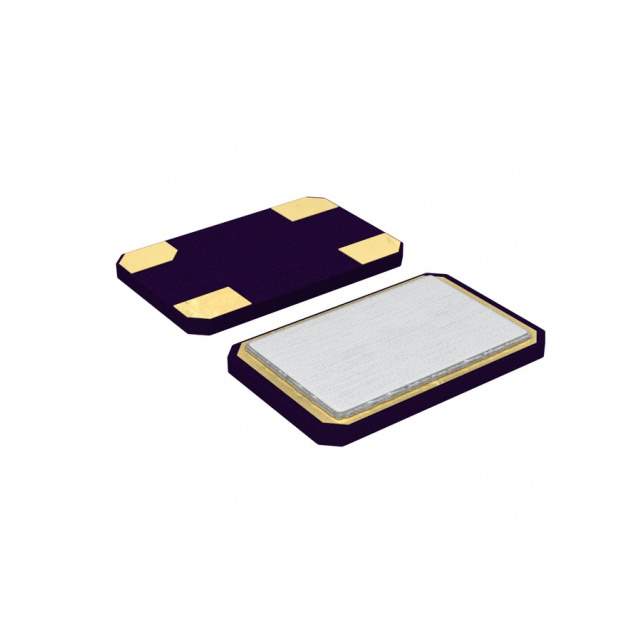

ABM8-22.000MHZ-8-D2-T Real Image
Same model may have multiple batches, images only for reference.

ABM8-22.000MHZ-8-D2-T

Part No ABM8-22.000MHZ-8-D2-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 22.0000MHZ 18PF SMD / 22 MHz ±20ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
Datasheet
ABM8-22.000MHZ-8-D2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM8
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 22 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-ABM8-22.000MHZ-8-D2-TTR
Standard Package 1,000
Win Source Part Number 1074500-ABM8-22.000MHZ-8-D2-T
Ultra Librarian 3D Model Ultra Librarian ABM8-22.000MHZ-8-D2-T CAD Model

Description

The ABM8 series MHz crystal is a high-quality electronic component that is perfect for use in various applications.

  • Frequency: 22 MHz
  • Frequency Tolerance: ±20ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 8pF
  • Height: 0.031" (0.80mm)
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Temperature Range: -40°C to 85°C
  • Type: Surface-mount device
  • Package/Case: 4-SMD, no lead
  • ESR: 50 Ohms
  • Frequency Stability: ±50ppm
  • Manufacturer: Abracon LLC
