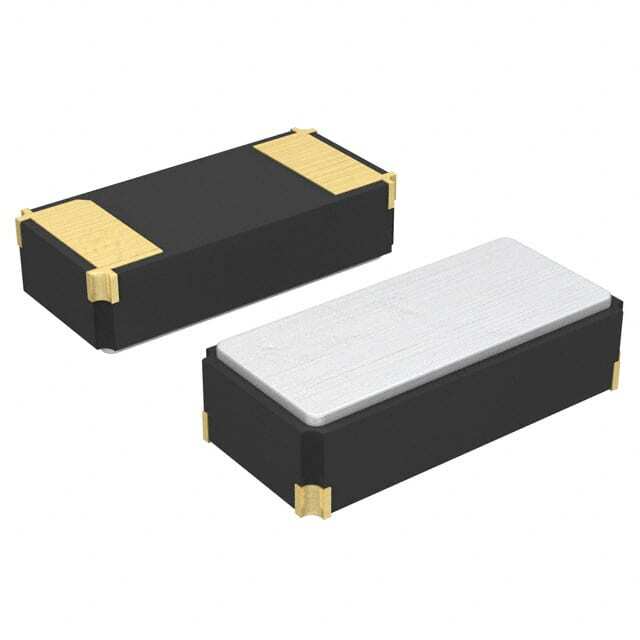

ABS07-32.768KHZ-1-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABS07-32.768KHZ-1-T

Part No ABS07-32.768KHZ-1-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS07
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±10ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Other Names Q5241501,535-9808-6,ABS0732768KHZ1T,535-9808-1,535-9808-2
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1285005-ABS07-32.768KHZ-1-T
Ultra Librarian 3D Model Ultra Librarian ABS07-32.768KHZ-1-T CAD Model

Description

The ABS07-32.768KHZ-1-T is a kHz Crystal (Tuning Fork) type crystal with a frequency of 32.768 kHz.

  • Type: kHz Crystal (Tuning Fork)
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12.5pF
  • Operating Mode: Fundamental
  • Height Seated (Max): 0.035 inches (0.9mm)
  • Mounting: SMD (SMT)
  • Package: 2-SMD, No Lead
  • Operating Temperature Range: -40°C to 85°C
  • Series: ABS07
  • Manufacturer: Abracon LLC
