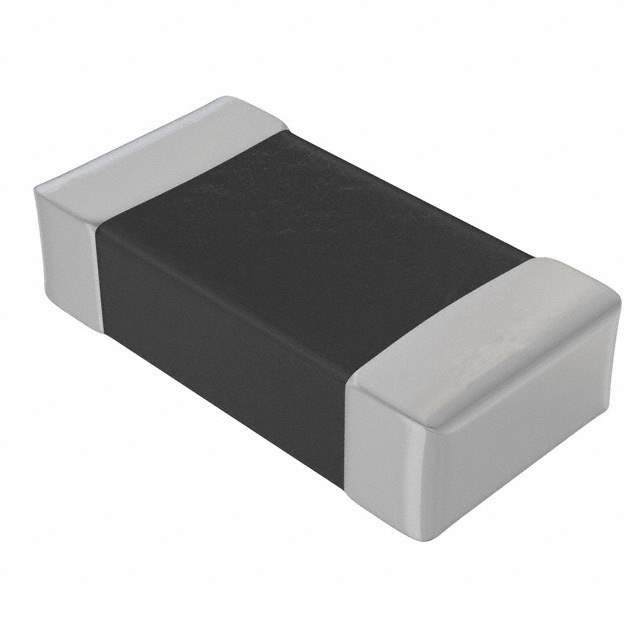

AIML-1206-R22K-T

Part No AIML-1206-R22K-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 220NH 250MA 350MOHM SM / 220 nH Shielded Multilayer Inductor 250 mA 350mOhm Max 1206 (3216 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIML-1206
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 220 nH
Tolerance ±10%
Current Rating (Amps) 250 mA
Shielding Shielded
DC Resistance (DCR) 350mOhm Max
Q @ Freq 30 @ 25MHz
Frequency - Self Resonant 200MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11683-1,535-11683-6,535-11683-2,AIML-1206-R22K-T-ND,AIML1206R22KT
Standard Package 3,000
Win Source Part Number 975671-AIML-1206-R22K-T
Ultra Librarian 3D Model Ultra Librarian AIML-1206-R22K-T CAD Model

Description

The AIML-1206-R22K-T fixed inductor from Abracon LLC has a Win Source Part Number of 975671-AIML-1206-R22K-T and is a multilayer inductor with a shielding feature.

  • Inductance: 220nH
  • Tolerance: ±10%
  • Package Size: 1206 (3216 Metric)
  • DC Resistance: 350mOhm Max
  • Current Rating: 250mA
  • Saturation Current: -
  • Temperature Range: -55°C to 125°C
  • REACH Status: REACH unaffected
  • ECCN: EAR99 compliant
