Same model may have multiple batches, images only for reference.

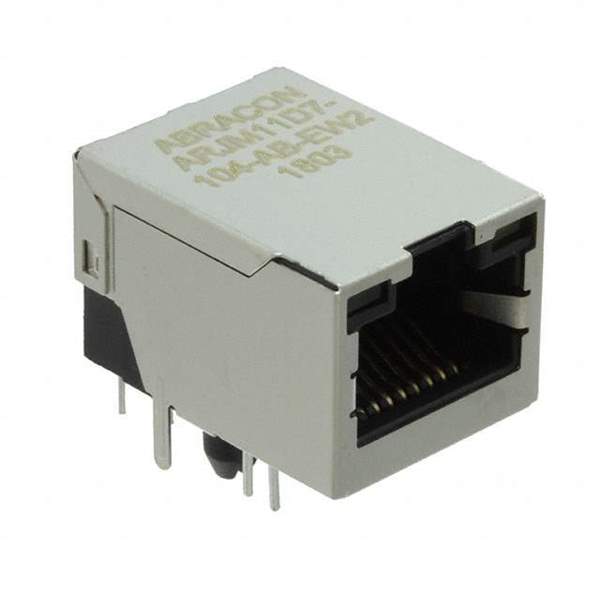

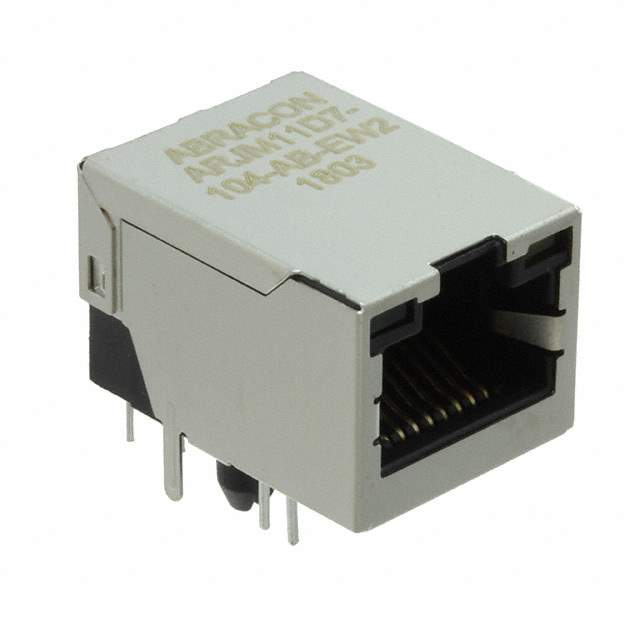

ARJM11D7-114-AB-EW2 Real Image
Same model may have multiple batches, images only for reference.

ARJM11D7-114-AB-EW2

Part No ARJM11D7-114-AB-EW2
Manufacturer Abracon LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, Power over Ethernet (PoE)
Datasheet
ARJM11D7-114-AB-EW2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Abracon LLC
Series ARJM11
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, Power over Ethernet (PoE)
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names ARJM11D7-114-AB-EW2-ND,535-14151
Standard Package 100
Win Source Part Number 1205121-ARJM11D7-114-AB-EW2
Ultra Librarian 3D Model Ultra Librarian ARJM11D7-114-AB-EW2 CAD Model

Description

The ARJM11D7-114-AB-EW2 is a modular connector jack with magnetics designed for use in various electronic applications manufactured by Abracon LLC.

  • Connector Type: RJ45
  • Rows: 1
  • Termination: solder
  • Contact Finish: gold with a thickness of 6.00µin (0.152µm)
  • Housing Material: not specified
  • Height: 0.543" (13.80mm)
  • Shielded: yes
  • Applications: 10/100 Base-T and Power over Ethernet (PoE)
  • Component Status: active
  • Temperature Range: -40°C to 85°C
