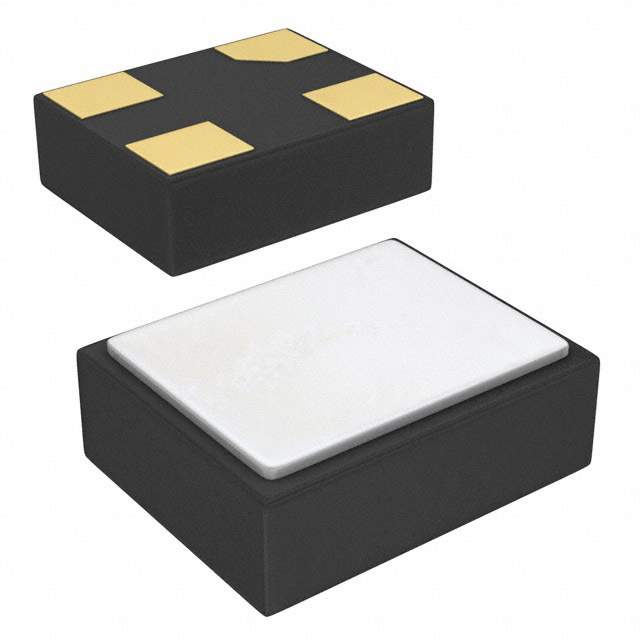

ASA-24.000MHZ-L-T Real Image
Same model may have multiple batches, images only for reference.

ASA-24.000MHZ-L-T

Part No ASA-24.000MHZ-L-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ HCMOS SMD  /  24 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASA-24.000MHZ-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ASA24000MHZLT,535-11707-6,535-11707-1,535-11707-2
Standard Package 1,000
Win Source Part Number 1007560-ASA-24.000MHZ-L-T
Ultra Librarian 3D Model Ultra Librarian ASA-24.000MHZ-L-T CAD Model

Description

The ASA24000MHZLT is a 24 MHz HCMOS output XO oscillator from Abracon LLC.

  • Output: HCMOS
  • Frequency: 24 MHz
  • Mount: Surface-mount
  • Package Size: 4-SMD, no lead
  • Frequency Stability: ±50ppm
  • Current Supply: 5mA
  • Voltage Supply: 3.3V
  • Height: 0.031 inches
  • Packaging: Tape and Reel
  • Package Quantity: 1000
  • Cross-Reference: 535-11707-6, 535-11707-1, and 535-11707-2
  • ECCN: EAR99
  • REACH: Not affected
