Same model may have multiple batches, images only for reference.

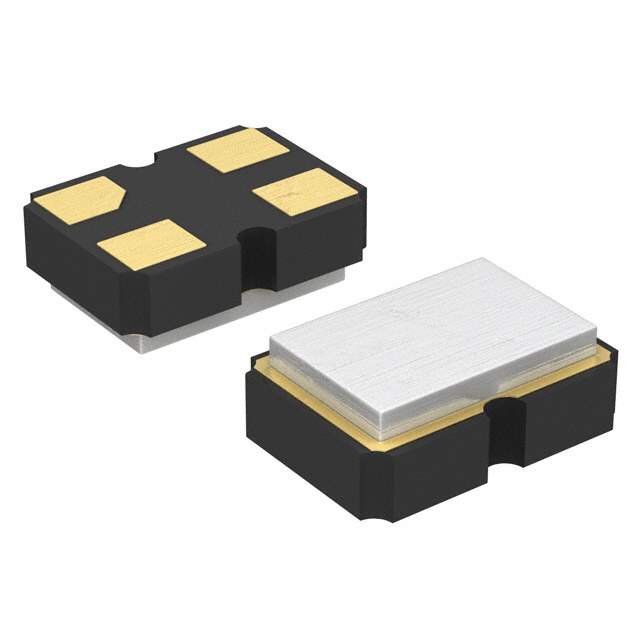

ASD-3.6864MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASD-3.6864MHZ-LC-T

Part No ASD-3.6864MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 3.6864MHZ HCMOS SMD  /  3.6864 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASD-3.6864MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASD
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 3.6864 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 993994-ASD-3.6864MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASD-3.6864MHZ-LC-T CAD Model

Description

The ASD-3.6864MHZ-LC-T crystal oscillator is a standard XO type oscillator with a frequency of 3.6864 MHz.

  • Frequency: 3.6864 MHz
  • Frequency Stability: ±50ppm
  • Output: HCMOS
  • Package: Tape & Reel
  • Height: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Current Supply: 7mA
  • Current Supply (Disable): 20µA
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
  • Manufacturer: Abracon LLC
  • Standard Package Quantity: 1000
