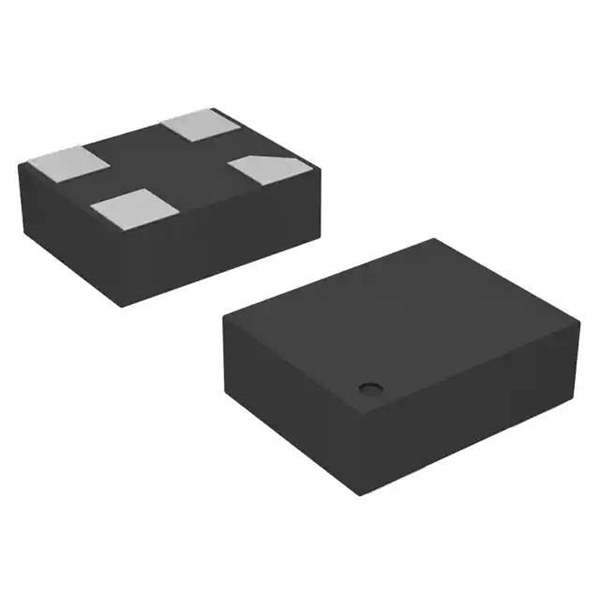

ASDM1-50.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASDM1-50.000MHZ-LC-T

Part No ASDM1-50.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 50.0000MHZ LVCMOS
Datasheet
ASDM1-50.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASDM, Pure Silicon™
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 50 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852775-ASDM1-50.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASDM1-50.000MHZ-LC-T CAD Model

Description

The ASDM1-50.000MHZ-LC-T is an XO (Standard) oscillator from Abracon LLC.

  • Product Name: ASDM1-50.000MHZ-LC-T
  • Manufacturer: Abracon LLC
  • Series: ASDM, Pure Silicon™
  • Frequency: 50 MHz
  • Frequency Stability: ±50ppm
  • Standby Function: Yes
  • Output: LVCMOS
  • Current Supply: 15mA
  • Current Supply (Disable): 15µA
  • Voltage Supply: 3.3V
  • Mounting Type: Surface Mount
  • Package: 4-SMD, no lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Standard Package: 1,000 pcs
