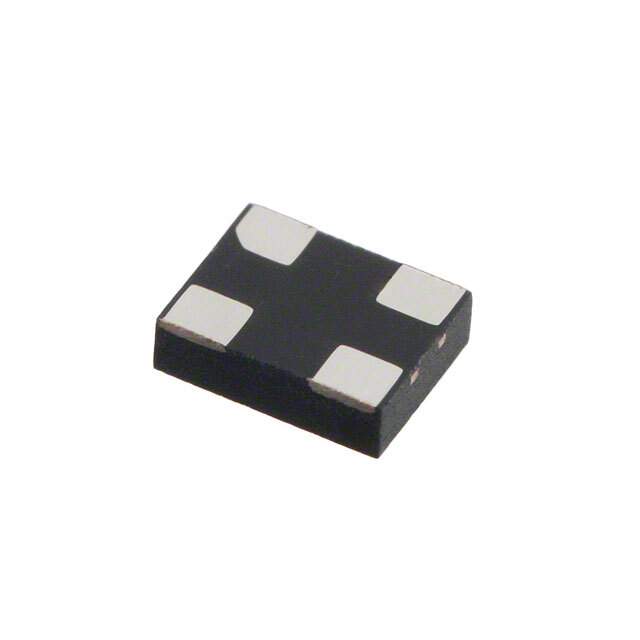

ASEMB-25.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-25.000MHZ-LC-T

Part No ASEMB-25.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-25.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1341138-ASEMB-25.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-25.000MHZ-LC-T CAD Model

Description

The ASEMB-25.000MHZ-LC-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASEMB, Pure Silicon™
  • Type: Standard XO
  • Package: Tape & Reel (TR)
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height - Seated (Max): 0.035" (0.90mm)
  • Frequency: 25 MHz
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Voltage - Supply: 1.8V ~ 3.3V
  • Current - Supply (Max): 16mA
