Same model may have multiple batches, images only for reference.

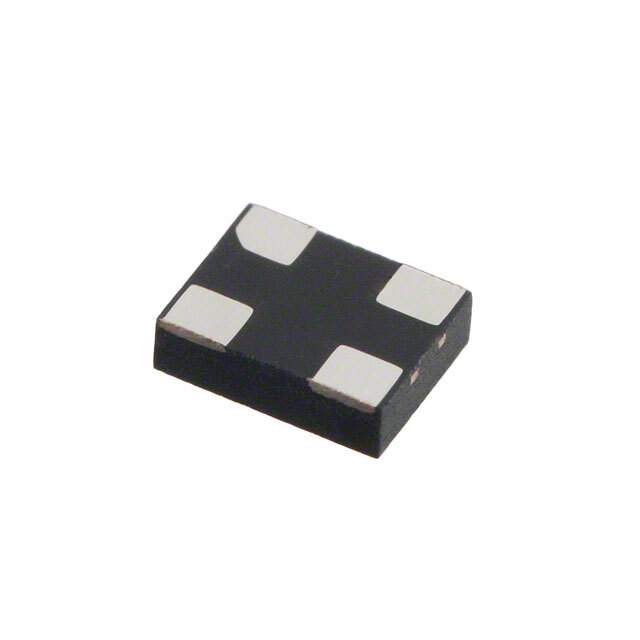

ASEMB-30.000MHZ-XY-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-30.000MHZ-XY-T

Part No ASEMB-30.000MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 30.0000MHZ CMOS SMD
Datasheet
ASEMB-30.000MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 52 Weeks
Features XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Manufacturer Abracon LLC
Series ASEMB, Pure Silicon™
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-11130-6, ASEMB30000MHZXYT, 535-11130-2, 535-11130-1
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861956-ASEMB-30.000MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-30.000MHZ-XY-T CAD Model

Description

The ASEMB-30.000MHZ-XY-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASEMB Pure Silicon series
  • Operating Temperature: -40°C to 105°C
  • Package: 4-SMD, no lead package
  • Mounting: Suitable for surface mount applications
  • Supply and Demand Status: Limited
  • Package Quantity: 1000
  • Estimated Production Lead Time: 52 weeks
