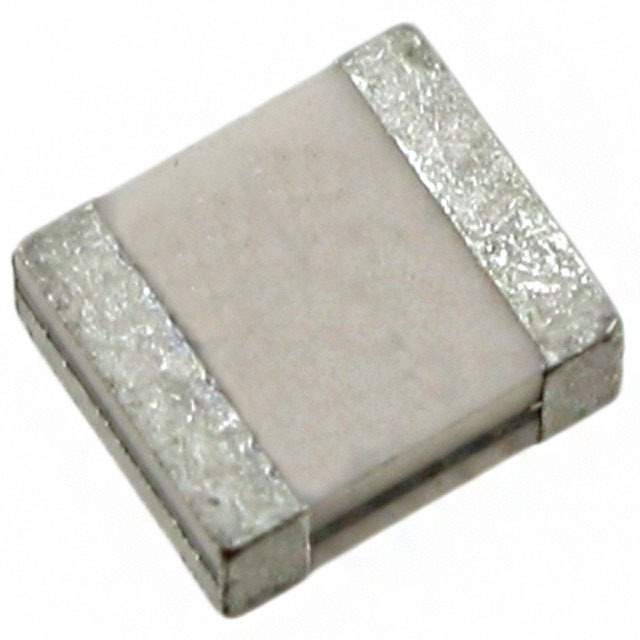

AWSZT-40.00CV-T Real Image
Same model may have multiple batches, images only for reference.

AWSZT-40.00CV-T

Part No AWSZT-40.00CV-T
Manufacturer Abracon LLC
Catalog Resonators
Description CERAMIC RES 40.0000MHZ SMD / 40 MHz Ceramic Resonator ±0.3% 40 Ohms -25°C ~ 85°C Surface Mount
Datasheet
AWSZT-40.00CV-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr Abracon LLC
Series AWSZT-CV
Package Tape & Reel
Type Ceramic
Frequency 40 MHz
Frequency Stability ±0.3%
Frequency Tolerance ±0.5%
Impedance 40 Ohms
Temperature Range - Operating -25°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1512 (3731 Metric)
Dimension 0.146" L x 0.122" W (3.70mm x 3.10mm)
Height 0.047" (1.19mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-10033-2,AWSZT4000CVT,535-10033-6,535-10033-1
Standard Package 1,000
Win Source Part Number 992074-AWSZT-40.00CV-T
Ultra Librarian 3D Model Ultra Librarian AWSZT-40.00CV-T CAD Model

Description

The AWSZT-CV series ceramic resonator from Abracon LLC is an SMD (SMT) mounted component used in various electronic circuits.

  • Frequency: 40 MHz
  • Impedance: 40 Ohms
  • Package: tape and reel
  • Standard Package: 1,000
  • Height: 0.047 inches (1.19mm)
  • Frequency Stability: ±0.3%
  • Frequency Tolerance: ±0.5%
  • Operating Temperature: -25°C to 85°C
  • Dimensions: 0.146 inches L x 0.122 inches W (3.70mm x 3.10mm)
  • Series: AWSZT-CV
