Same model may have multiple batches, images only for reference.

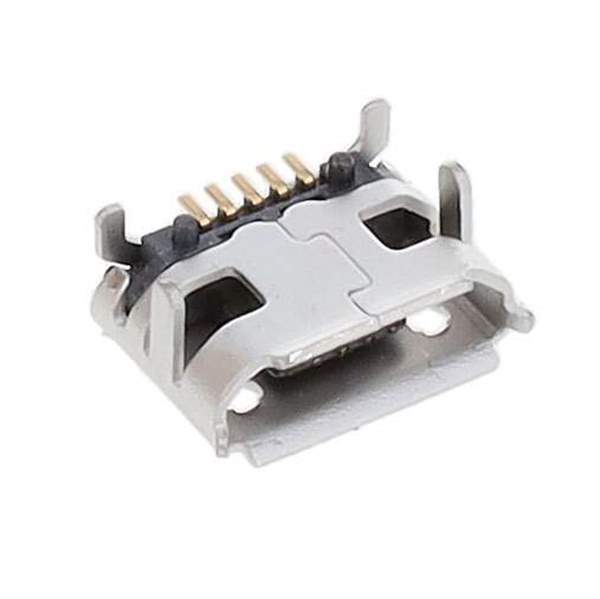

4023 Real Image
Same model may have multiple batches, images only for reference.

4023

Part No 4023
Manufacturer Adafruit Industries LLC
Catalog USB, DVI, HDMI Connectors
Description MICRO B USB CONNECTORS - PACK OF / USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
4023 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Adafruit Industries LLC
Package Bulk
Product Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 1A
Mating Cycles 10000
Shielding Shielded
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855945-4023
Ultra Librarian 3D Model Ultra Librarian 4023 CAD Model

Description

The USB micro B Connector Assemblies from Adafruit Industries LLC are high-quality connectors designed for USB, DVI, and HDMI applications.

  • Feature: board guide
  • Termination: solder
  • Shielded: yes
  • Contacts: 5
  • Gender: receptacles
  • Package: one connector assembly
  • Flammability Rating: UL94 V-0
  • Mounting: surface mount and right-angle
  • Operating Temperature: -30°C to 80°C
  • MSL Level: 1 (unlimited shelf life)
  • HTSUS Code: 8536.69.4040
