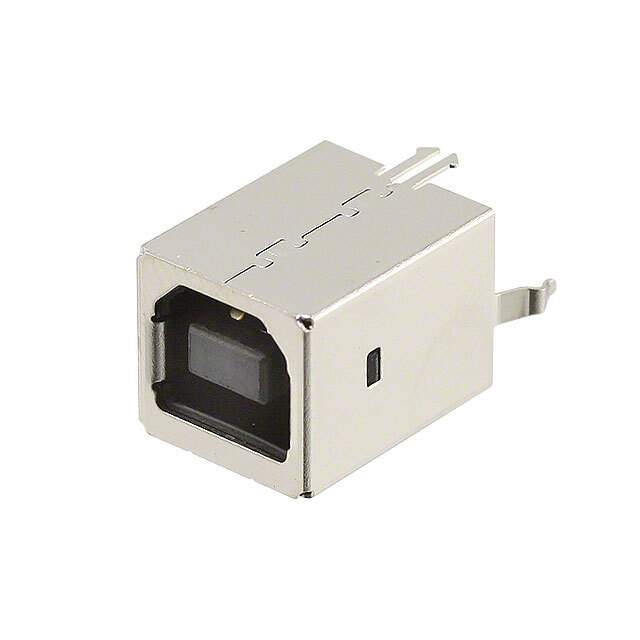

Same model may have multiple batches, images only for reference.

USB-B1KSB6

Name: USB-B1KSB6
Brand: On Shore Technology Inc.
SKU: 1352001
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	USB-B1KSB6
Manufacturer	On Shore Technology Inc.
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT TYPEB 4POS VERT / USB-B (USB TYPE-B) Receptacle Connector 4 Position Through Hole
Datasheet	USB-B1KSB6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	On Shore Technology Inc.
Package	Tray
Connector Type	USB-B (USB TYPE-B)
Number of Contacts	4
Gender	Receptacle
Mounting Type	Through Hole
Mounting Feature	Vertical
Termination	Solder
Features	Board Lock
Temperature Range - Operating	0°C ~ 40°C
Number of Ports	1
Current Rating (Amps)	1A
Voltage - Rated	30VAC
Shielding	Unshielded
Contact Finish	Gold
Shell/Shielding Material	Brass
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	USB-B1K
Standard Package	110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352001-USB-B1KSB6
Ultra Librarian 3D Model	Ultra Librarian USB-B1KSB6 CAD Model

Description

The USB-B1KSB6 is a USB Type-B connector designed for use in a variety of applications.

Mounting Feature: Vertical
Feature: Board Lock
Temperature Range: 0°C to 40°C
Voltage Rating: 30VAC
Packaging: Trays
Contact Finish: Gold
Current Rating: 1A
Number of Contacts: 4
Shielded: Yes
Flammability Rating: UL94 V-0
