Same model may have multiple batches, images only for reference.

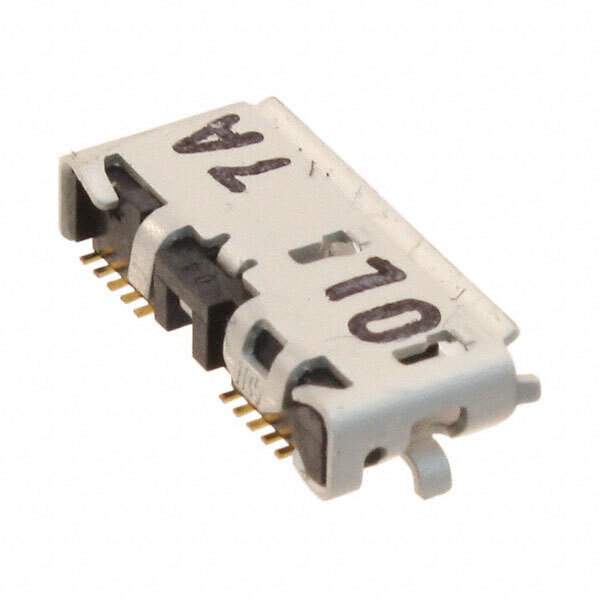

ZX360D-B-10P(30) Real Image
Same model may have multiple batches, images only for reference.

ZX360D-B-10P(30)

Part No ZX360D-B-10P(30)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.0 MICRO B SMD R/A / USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle; Through Hole
Datasheet
ZX360D-B-10P(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Hirose Electric Co Ltd
Series ZX360
Package Tape & Reel
Connector Type USB - micro B
Number of Contacts 10
Gender Receptacle
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0) )
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 10000
Contact Finish Palladium-Nickel
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number ZX360
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348638-ZX360D-B-10P(30)
Ultra Librarian 3D Model Ultra Librarian ZX360D-B-10P(30) CAD Model

Description

The ZX360D-B-10P(30) is a USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) micro B connector assembly from Hirose Electric Co Ltd.

  • Termination: Solder
  • Contact Finish: Palladium-Nickel
  • Contacts: 10
  • Voltage Rating: 30VAC
  • Mounting Type: Surface Mount, Right Angle; Through Hole
  • Temperature Range: -30°C to 85°C
  • Base Product Number: ZX360
  • Series: ZX360
  • Standard Package: 3,000
